Stable Working Woodworking Edge Bander SYS-368 With Corner Rounding

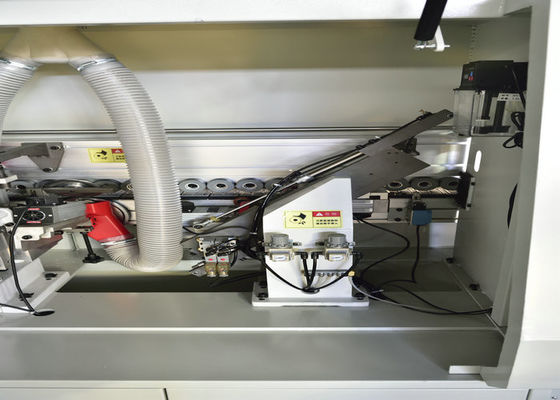

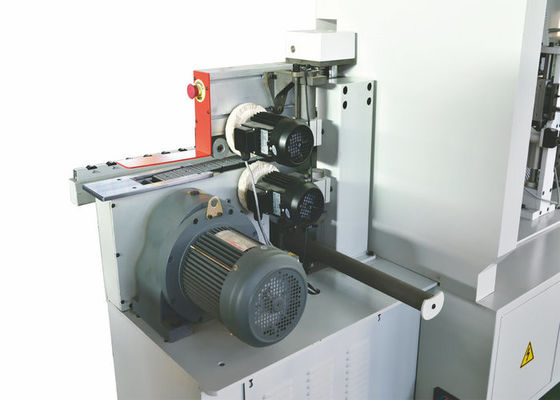

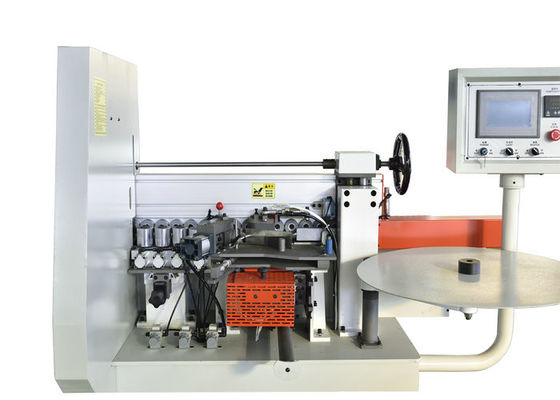

  • Stable Working Woodworking Edge Bander SYS-368 With Corner Rounding
  • Stable Working Woodworking Edge Bander SYS-368 With Corner Rounding
  • Stable Working Woodworking Edge Bander SYS-368 With Corner Rounding
Place of Origin Qingdao, China
Brand Name OSETMAC
Certification CE,ISO
Model Number SYS-368
Minimum Order Quantity 1
Price Negotiable
Packaging Details Seaworthy wooden case
Delivery Time 15 days
Payment Terms T/T, L/C
Supply Ability 3000 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Edge Banding Machine Working Pressure 0.6Mpa
Panel Length ≥150mm Feeding Speed 15-23m/min
Model SYS-368 Feature Full Automatic
High Light

woodworking edge bander

,

edge banding trimming machine
Leave a Message
Product Description

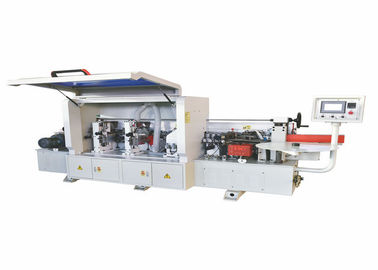

SYS-368 Automatic Edge Bander with Trimming for Panel Furniture and PVC





Quick Detail:

  1. Delta Inverter
  2. Delta PLC Touch Screen
  3. With lubricating oil box for conveyors
  4. Total Electric Power Switch
  5. Full automatic
  6. Imported parts and high quality





Description:

  1. Full automatic with functions of : Gluing, End Cutting, Rough Trimming,Fine Trimming, Scraping, Buffing.
  2. This machine uses imported quality engines and electrics, which make sure of the high performance and stability of the machine.
  3. High precision and easy-to-use features makes your work more efficient.
  4. This model has best quality-price ratio with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
  5. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.





Applications:

This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.





Specifications:



MODEL SYS-368
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 300HZ 18000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Lifting Motor 0.25KW
Glue Pot Heating Power 1.85KW
Assistant Heating Power 0.45KW
Lighting Power 0.08KW
Total Power 10.4KW
Dimension 4417x830x1610mm
Net Weight 1500KGS



Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
