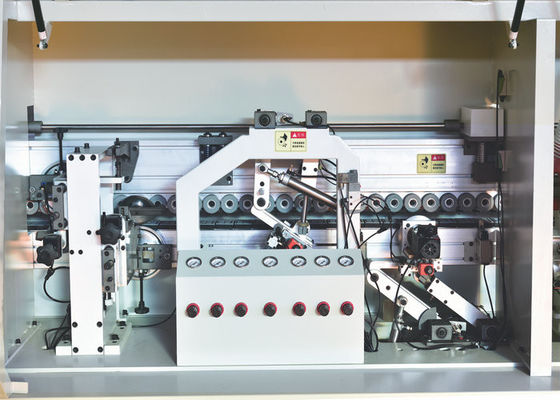

Customized Plywood Edge Banding Machine High Working Capacity Strengthen Frame
-
-
Large Image :
Customized Plywood Edge Banding Machine High Working Capacity Strengthen Frame
|
Product Details:
| Place of Origin: |
Qingdao, China |
| Brand Name: |
OSETMAC |
| Certification: |
CE,ISO |
| Model Number: |
SYS-468 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
Negotiable |
| Packaging Details: |
Seaworthy wooden case |
| Delivery Time: |
15 days |
| Payment Terms: |
T/T, L/C |
| Supply Ability: |
3000 sets per year |
|
Detailed Product Description
| Feature: |
High Precision |
Dimension: |
5660x830x1610mm |
| Working Pressure: |
0.6Mpa |
Detail: |
Total Electric Power Switch |
| Usage: |
Woodworking |
Total Power: |
11.0KW |

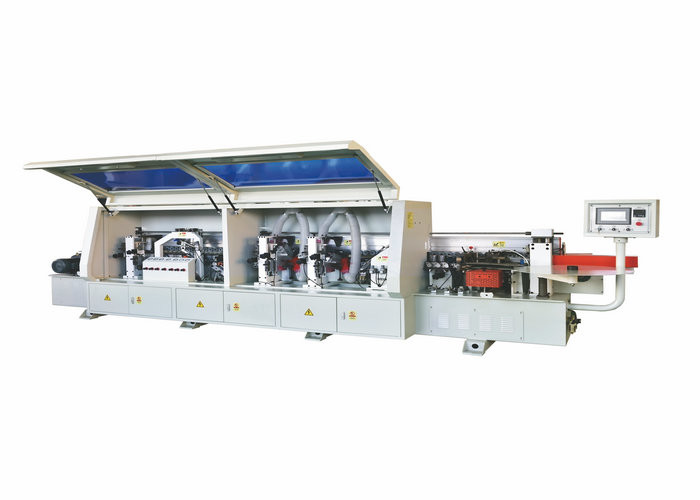

SYS-468 Automatic Edge Bander with Trimming for Panel Furniture and PVC
Quick Detail:
- Delta Inverter
- Delta PLC Touch Screen
- With lubricating oil box for conveyors
- Total Electric Power Switch
- Full automatic
- Imported parts and high quality
Description:
- Full automatic with functions of : Gluing, End Cutting, Rough Trimming,Fine Trimming, Track Trimming, Scraping, Buffing.
- This machine uses imported quality engines and electrics, which make sure of the high performance and stability of the machine.
- High precision and easy-to-use features makes your work more efficient.
- This model has best quality-price ratio with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
- This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.
Applications:
This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.
Specifications:
| MODEL |
SYS-468 |
| Panel Thickness |
10-60mm |
| Edge Band Thickness |
0.4-3mm |
| Panel Width |
≥60mm |
| Panel Length |
≥150mm |
| Feeding Speed |
15-23m/min |
| Working Pressure |
0.6Mpa |
| Voltage |
380V/50HZ/3PH |
| Gluing Motor |
0.75KW 50HZ 1400RPM |
| End Cutting Motor |
0.37KW * 2 200HZ 12000RPM |
| Trimming Motor |
0.75KW * 4 300HZ 18000RPM |
| Track Trimming Motor |
0.37KW*2 |
| Buffing Motor |
0.37KW * 2 50HZ 1400RPM |
| Conveyor Motor |
2.2KW |
| Lifting Motor |
0.37KW |
| Glue Pot Heating Power |
1.85KW |
| Assistant Heating Power |
0.45KW |
| Lighting Power |
0.16KW |
| Total Power |
11.0KW |
| Dimension |
5660x830x1610mm |
| Net Weight |
2100KGS |
Competitive Advantage:
- We can customize the outlook and functions of the machine according to your requirement.
- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
