380V 50HZ Wood Edge Banding Trimming Machine Pre - Milling Full Automatic

I'm Online Chat Now

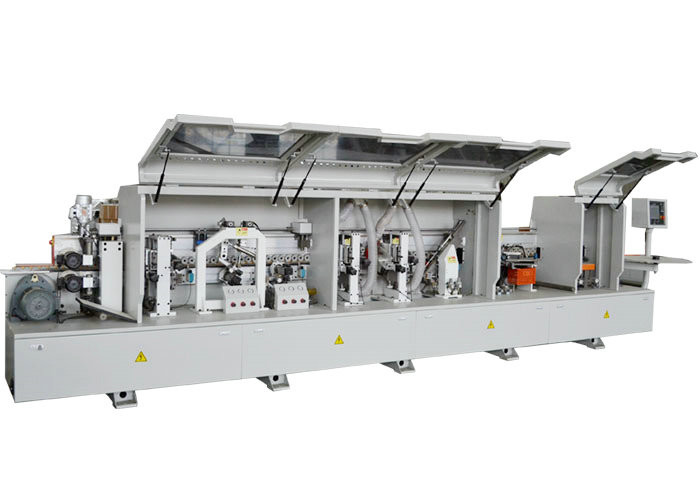

380V 50HZ Wood Edge Banding Trimming Machine Pre - Milling Full Automatic

China 380V 50HZ Wood Edge Banding Trimming Machine Pre - Milling Full Automatic supplier
380V 50HZ Wood Edge Banding Trimming Machine Pre - Milling Full Automatic supplier 380V 50HZ Wood Edge Banding Trimming Machine Pre - Milling Full Automatic supplier

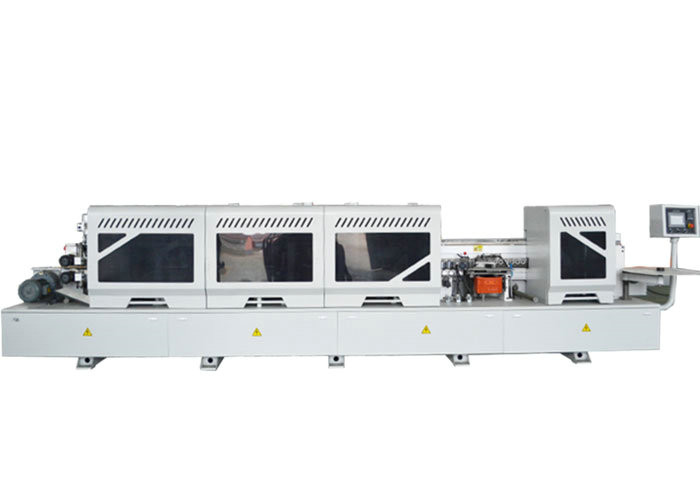

Large Image :  380V 50HZ Wood Edge Banding Trimming Machine Pre - Milling Full Automatic

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: SYS-468J

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Name: Woodworking Automatic Edge Banding Machine Feature: Full Automatic
Usage: Panel Furniture And PVC Voltage: 380V/50HZ/3PH
Working Pressure: 0.6Mpa Feeding Speed: 15-23m/min

SYS-468 Automatic Edge Bander with Trimming for Panel Furniture and PVC





Applications:



This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.







Quick Detail:

  1. Delta Inverter
  2. Delta PLC Touch Screen
  3. With lubricating oil box for conveyors
  4. Total Electric Power Switch
  5. Full automatic
  6. Imported parts and high quality





Description:





1) The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

2) The buffing device adopt the board processed by cotton polishing wheel, by end- polishing to make a more smooth surface.

3) End-cutting mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the Cutting surface smoothly.

4) Scraping unit for a perfect finishing of the applied edge.





Specifications:



MODEL SYS-468
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 300HZ 18000RPM
Track Trimming Motor 0.37KW*2
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Lifting Motor 0.37KW
Glue Pot Heating Power 1.85KW
Assistant Heating Power 0.45KW
Lighting Power 0.16KW
Total Power 11.0KW
Dimension 5660x830x1610mm
Net Weight 2100KGS





Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
