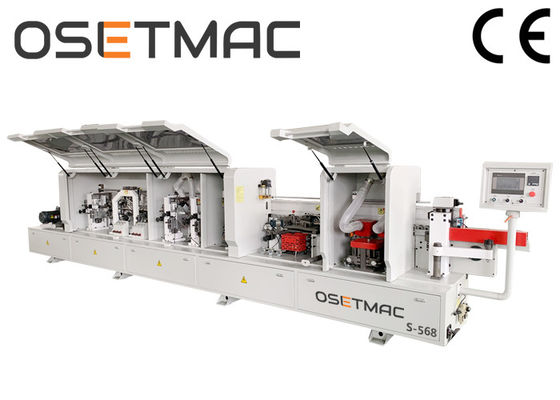

Easy Operation Wood Edge Banding Machine SYS-568 with 8 full functions for PVC MDF board

Place of Origin Qingdao, China
Brand Name OSETMAC
Certification CE, ISO
Model Number SYS-568
Minimum Order Quantity 1
Price USD5000-15000/SET
Packaging Details Seaworthy wooden case
Delivery Time 15 days
Payment Terms T/T, L/C, Western Union
Supply Ability 3000 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Weight 2100kg Warranty 12 Months
Panel ≥60mm Voltage 380V/50HZ/3PH
Model SYS-568 Name Automatic Edge Bander
High Light

woodworking edge bander


edge banding trimming machine

Leave a Message
Product Description

Easy Operation Wood Edge Banding Machine SYS-568 with 8 full functions for Panel Furniture

Easy Operation Wood Edge Banding Machine SYS-568 with 8 full functions for PVC MDF board 0

Automatic Edge Bander Advantage


1. This is a automatic edge banding machine, easy to operate ;

2. Adopted integrated frame,that offer excellent stability,specially good for long-term work;

3. Guide rail and press beam adopted by aluminum alloy material,anti-corrosion,high strength and stability when all motor running;

4.The machine capable of 24 hours work as strengthen frame and strictly electric parts;

5. Low air pressure alarm,will see in screen,that will protect panel and reduce the rate of defective products;



Automatic Edge Bander Description:

  1. Full automatic with functions of : Gluing, End Cutting, Rough Trimming,Fine Trimming, Track Trimming, Scraping, Buffing.
  2. This machine uses imported quality engines and electrics, which make sure of the high performance and stability of the machine.
  3. High precision and easy-to-use features makes your work more efficient.
  4. This model has best quality-price ratio with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
  5. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.



Automatic Edge Bander Applications:


This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.





Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 300HZ 18000RPM
Track Trimming Motor 0.37KW*2
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Lifting Motor 0.37KW
Glue Pot Heating Power 1.85KW
Assistant Heating Power 0.45KW
Lighting Power 0.16KW
Total Power 11.0KW
Dimension 5660x830x1610mm
Net Weight 2100KGS



Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
