Safety Industrial Planer Thicknesser High Rotation Speed For Wood Surface

I'm Online Chat Now

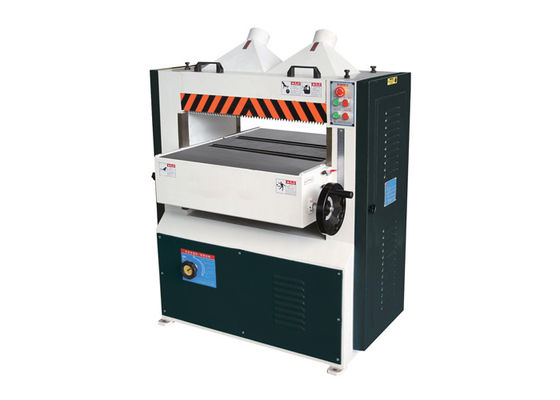

Safety Industrial Planer Thicknesser High Rotation Speed For Wood Surface

China Safety Industrial Planer Thicknesser High Rotation Speed For Wood Surface supplier

Large Image :  Safety Industrial Planer Thicknesser High Rotation Speed For Wood Surface

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: MB106CM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Voltage: 380V/7.5kw Blade Size: 630*35*3/5mm
Planing Length: ≧300mm Advantage: Automatic Lifting
Feature: Heavy Duty Type: Single-sided

MB106CM Auto Single Side Thickness Planer





Features



1. Automatic lifting
2. Stepless speed regulation
3. Single-sided heavy duty





Specification
Spindle Speed 5500rpm
Feeding Speed 4.5-22m/min
Planing width 650mm
Planing thickness 5-220mm
Planing length ≧300mm
Maximum cutting capacity ≦10mm
Blade size 630*35*3/5mm
Voltage/install power 380V/7.5kw
Weight 700kg
Dimensions 900*1100*1300mm





Product advantage



1. Made from cast iron for optimal vibration absorption, the massive machine base ensures a smooth running for the cutter spindles and the feeding mechanism.
2. Positive upper & bottom feeding rollers for easy, fast and powerful material feeding.
3. Bottom cutterhead pull-out design for convenient and safe knife replacement.
4. Made from special material and specially treated, the cutter spindle is dynamically balanced, characterizes by speedy rotation, high precision and long service life.
5. Auto lubricator provides a forced lubrication to all major transmission parts and sliding parts regularly, features oil-free protection.
6. Feeding mechanism is frequency inverter controlling system, suitable for various material processing.
7. The adjustment of the movable working table is carried out at the machine side for an easy, safe and fast operation.
8. Provided with auto thickness setting device and upper pressure mechanism down limit switch. Put the material on the auto thickness setting device, down the upper pressure mechanism to set the thickness automatically. No repeated thickness adjustment needed.
9. Both the upper & down cutter spindles are designed with cutter spindle locking device,prevents the finger from being hurt during knife replacement.
10. High working precision, excellent quality and wood saving are guaranteed.
11. Provided with magnetic scale digital readout for working thickness adjustment, the working precision is up to 0.01mm.
12. The feeding pressure can be adjusted according to the working condition to prevent workpiece from sliding and avoid any pressing mark on the workpiece surface.
13. Provided with heavy duty helical cutterheads, improves the working efficiency, especially suitable for hard and moisture material processing.
