11.65kw Brush Sanding Machine For Polish Plywood MDF
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year | Conveyor Speed | 5-20m/min |
|---|---|---|---|
| Automatic Grade | Automatic | Power | 11.65kw |
| Max Working Width | 1000mm/1300MM | Working Thickness | 8-160mm |
| High Light | industrial sanding machine,wood sanding equipment |
||
Product Description

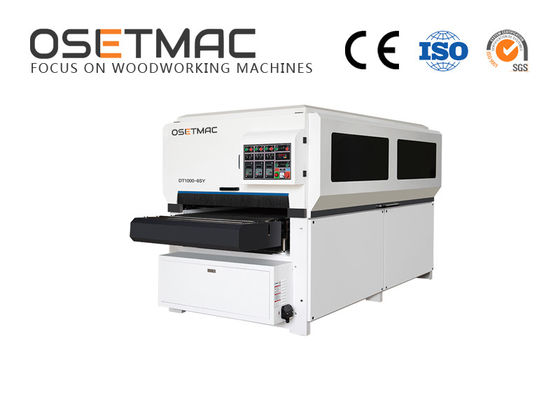

Brush Sanding Machine For Polishing wood DT1000-6SY(Z2Y2H2)
Description:
Automatic Wood Brush Sanding Machine DT1000-6SY is mainly for the grinding or sanding for door, cabinet , plywood,MDF and Other panel furniture or .it is widely applier to the board with primer ,PE ,PU,UV coating because of its good polishing effect .
Inner Structure Sketch:
Advantage:
----A variety of arrangements of the roller , it can be customized according to the different polishing requirements .OEM&ODM are available .
----Imported high-quality sandpaper,Japan RIKEN brand sandpaper and Germany HERMES sandpaper are available.
----Fuselage platform through gantry milling processing, improve the service life of linear guide, workpiece polishing precision is higher.
----The machine is equipped with a frequency converter device, which can adjust different speed according to the hardness of polishing materials.
----The machine is equipped with pure copper core national standard motor and imported electrical parts to ensure the high quality and high efficiency of the machine.
----High work efficiency , every minute to grind a door , save time and labor .
Main Technical Parameter :
| Specification | DT1000-6SY(Z2Y2H2) |
| Max Working Width | 1000mm/1300mm |
| Working Thickness | 5mm-160mm |
| Working Length | ≥320mm |
| Conveyor Speed | 0-15m/min |
| Wooden Case Weight | 180kg |
| Total Power | 17kw |
| Packing Dimension | 4650*2200*1950mm/4650*2500*1950mm |
| Net Weight | 3500kg/4000kg |
| Dust Extractor Diameter | φ120mm |
Loading Container:
Other Similar Product:
DT1000-6S(Z2Y2H2)
Main Technical Parameter :
| Specification | Z2Y2H2 |
| Max Working Width | 1000mm |
| Working Thickness | 8mm-160mm |
| Working Length | ≥360mm |
| Conveyor Speed | 5-20m/min |
| Total Power | 11.47kw |
| Packing Dimension | 3100*1760*1900mm |
| Net Weight | 1600kg |
| Wooden Case Demension | 3180*1830*2150mm |
| Wooden case Weight | 180kg |
DT1000-6S(Y2H2H2)
Main Technical Parameter :
| Specification | Y2H2H2 |
| Max Working Width | 1000mm |
| Working Thickness | 8mm-160mm |
| Working Length | ≥360mm |
| Conveyor Speed | 5-20m/min |
| Wooden Case Weight | 170kg |
| Total Power | 12.14kw |
| Packing Dimension | 2810*1760*1900mm |
| Net Weight | 1600KG |
| Wooden Case Dimension | 2890*1830*2150mm |
DT1000-6S(Y2Y2H2):
Main Technical Parameter :
| Specification | Y2Y2H2 |
| Max Working Width | 1000mm |
| Working Thickness | 10mm-150mm |
| Working Length | ≥350mm |
| Conveyor Speed | 5-20m/min |
| Roller Speed | Frequency Control |
| Total Power | 9.6kw |
| Packing Dimension | 2810*1760*1890mm |
| Net Weight | 1700KG |
| Wooden Case Dimension |
2890*1830*2150mm |
DT1000-8S(Z2Y2H2H2):
Main Technical Parameter :
| Specification | Z2Y2H2H2 |
| Max Working Width | 1000mm |
| Working Thickness | 10mm-160mm |
| Working Length | ≥350mm |
| Conveyor Speed | 5-20m/min |
| Roller Speed | Frequency Control |
| Total Power | 16.45kw |
| Packing Dimension | 3950*1730*1850mm |
| Net Weight | 2800KG |
| Wooden Case Dimension | 4550*1730*1850mm |
