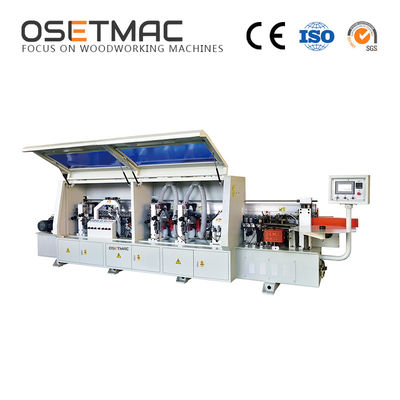

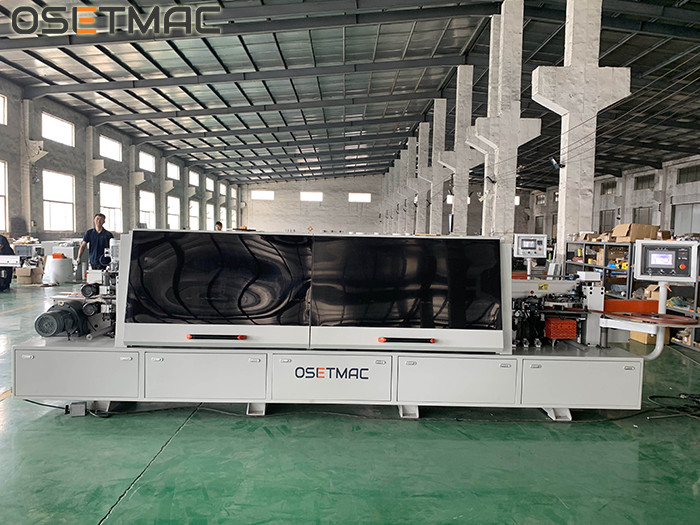

Wood Panels 0.6Mpa Edge Band Machine

Wood Panels 0.6Mpa Edge Band Machine
Wood Panels 0.6Mpa Edge Band Machine Wood Panels 0.6Mpa Edge Band Machine Wood Panels 0.6Mpa Edge Band Machine Wood Panels 0.6Mpa Edge Band Machine Wood Panels 0.6Mpa Edge Band Machine

Large Image :  Wood Panels 0.6Mpa Edge Band Machine

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE
Model Number: SYS-468
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: wood case
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000sets/year

Wood Panels 0.6Mpa Edge Band Machine

Description
Voltage: 220V/380V Condition: New
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Edge Banding Machine Function: Gluing
High Light:

wood edge banding machines

,

edge banding trimming machine

Automatic Edge band machine SYS-468 for various kinds of  panels



Parameters
Model SYS-468
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 200HZ 12000RPM
Corner Trimming Motor 0.37KW * 2 200HZ 12000RPM
0.75KW * 2 200HZ 12000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Glue Pot Heating Power 2.4KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 12.4KW
Dimension 5660*1000*1650mm
Wooden Crate Package 5760*1050*1760mm



Wood Panels 0.6Mpa Edge Band Machine

Wood Panels 0.6Mpa Edge Band Machine

Wood Panels 0.6Mpa Edge Band Machine

Wood Panels 0.6Mpa Edge Band Machine

Wood Panels 0.6Mpa Edge Band Machine

Description:
* 7 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
* Working Voltage: 380V/50HZ /3PH
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
*Honeywell travel switch, contactor, air switch.
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.
* Support customization for the machine appearance.

Wood Panels 0.6Mpa Edge Band Machine

Loading Container :

Wood Panels 0.6Mpa Edge Band Machine

Wood Panels 0.6Mpa Edge Band Machine

Wood Panels 0.6Mpa Edge Band Machine
