Horizontal 5.5kw Woodworking Sliding Table Saw
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Warranty||12 Months||After-sales Service Provided||Engineers Available To Service Machinery Overseas,video Technical Support, Online Support,field Maintenance And Repair Service|
|Voltage||380v,220v/380v/415v/440v Or As Customer Request||Style||Horizontal ,Vertical|
|Main Motor Power||5.5kw||Gross Cut Capacity||3200mm|
sliding panel saw machine,
sliding table circular saw machine

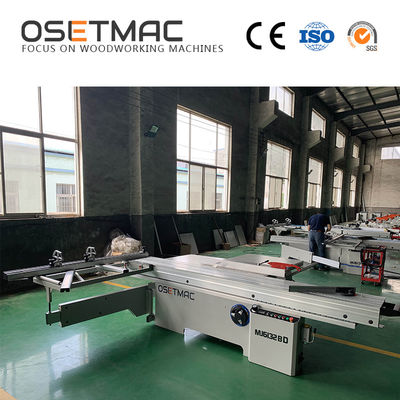

Horizontal Sliding Panel Saw For Furniture & Cutting Wood Machine MJ6132BD
Sliding Table Saw Machine With Automatic Saw Blade For Furniture & Cutting Wood Machine MJ6132BD Made in china
This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate guarantees the compressive strength and the high precision of the inter-machine, which can also reduce the shock of the machine.
2.Main Saw and Scoring Saw Spindle
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
3.SKF Bearing of Sliding panel saw
All bearings in the wood working machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.
4.Sliding Table Structure and Feature
Our sliding table supplier is the same as SCM. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.
5.Cast-iron Main Table and Broaden Extension Table
(sliding panel saw )
After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy. Broaden extension table makes the operation more convenient.
6.Supporting Arm and Cross Cut Table
Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading.
The main saw blade lifting is electric control which makes it easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.
8.Rip Fence Fine Adjustment
Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.
9.Movable Positioning Stops and Cross Cut Fence
The positioning stops are made of high quality aluminum alloy with extrusion and precision processing, which is very durability.
10.Orange Dust Hood and Riving Knife
The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.
12.saw blade guard
1. Altendour-structure Dust Cover
2. Digital Readout
Note: The price in the price list does not including these optional devices.
More Trading Details
|Delivery Time||Negotiable (7-30DAYS)|
|FOB Port||Qingdao Port, China|
|Country of Origin||China|
Our Certificate :
We have CE and ISO certificate ,Think All our models can meet the quality level in your market .
Different outlook for different customer
This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
|Sliding Table Dimension||3200*380mm|
|Cast Iron Table Dimension||910*620*80mm|
|Length Extension Table||905*680*70mm|
|Width Cutting Extension Table||640*680*70mm|
|Main Saw Diameter||300mm|
|Main Saw Blade Diameter Maximum||350mm|
|Main Saw Bore Diameter||30mm|
|Max. Cutting Height With Bade at 90||80/100mm(φ300/350)|
|Max. Cutting Height With Bade at 45||50/70mm(φ300/350)|
|Main Motor Power||5.5KW|
|Main Blade Speed||4000/6000RPM|
|Scorning Saw Blade Diameter||120mm|
|Scorning Saw Bore Diameter||20mm|
|Scorning Saw Motor Power||1.1KW|
|Scorning Blade Speed||8000RPM|
|Max. Cutting Width||1250mm|
|Max. Cutting Length||3100mm|
|Blade Tilting Adjustment||0-45°|
|Main Saw Height Adjustment||Electric|
|Scorning Saw Height Adjustment||Manual|
|Dust Guard Outlet Diameter||80mm|
|Dust System Outlet Diameter||100mm|
Wood Packing Dimensions
Main Crate and Sliding table
- It can load 24 sets in one 40’ GP Container and 10 sets in one 20 GP container.
- We can change the outlook of the machine according to your requirement.
- Any size of the sliding table can be produced and the longest customized size is 4200mm.
- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
Packing and Loading container
