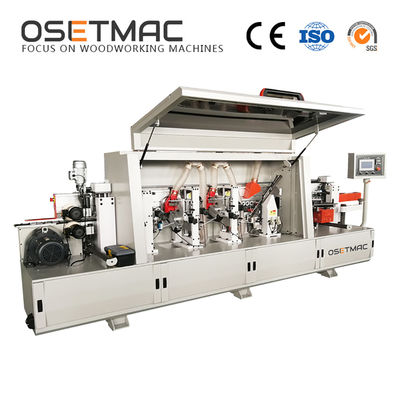

Veneer 220V/380V Woodworking Edge Banding Machine

Place of Origin CHINA
Brand Name OSETMAC
Certification CE
Model Number SYS-368
Minimum Order Quantity Negotiable
Price 18000USD
Packaging Details wooden case
Delivery Time 5-8working days
Payment Terms L/C, T/T, MoneyGram, MoneyGram

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Automatic Edge Band Machine Voltage 220V/380V
Condition New Warranty 1 Year
After-sales Service Provided Engineers Available To Service Machinery Overseas Type Edge Banding Machine
High Light

wood edge banding machines


edge banding trimming machine

Leave a Message
Product Description

Automatic Edge Band Machine SYS-368 For PVC ,veneer ,acrylic sideband to seal edge


Model SYS-368
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor 0.75KW * 4 300HZ 18000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Glue Pot Heating Power 2.4KW
Assistant Heating Power 0.3KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 10.43KW
Dimension 4700x1000x1650mm
Wooden Crate Package 4800×1050×1760mm

Veneer 220V/380V Woodworking Edge Banding Machine 0Veneer 220V/380V Woodworking Edge Banding Machine 1

Veneer 220V/380V Woodworking Edge Banding Machine 2

Veneer 220V/380V Woodworking Edge Banding Machine 3

* 6 Functions: Gluing--End Cutting--Rough Trimming-Fine Trimming--Scraping--Buffing
* Working Voltage: 380V/50HZ /3PH
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
*Honeywell travel switch, contactor, air switch.
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.
* Support customization for the machine appearance.

Veneer 220V/380V Woodworking Edge Banding Machine 4
