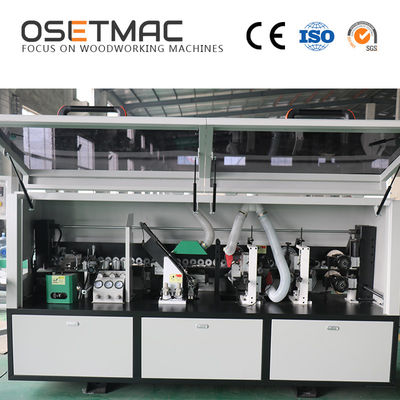

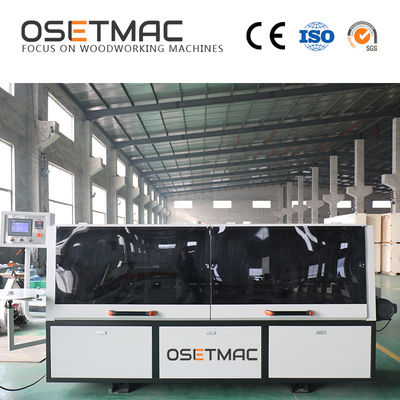

Fsat Feeding 15m/Min Hardwood Floor Edge Sander
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
High Light | woodworking edge bander,edge banding trimming machine |
---|
Product Description
Wood Edge Sealing Machines For Edge Sealing SYS-320B
Automatic Edge Banding Machine SYS320B
SPECIFICATIONS | ||
Model | SYS-320B | |
Panel Thickness | 10-60mm | |
Edge Band Thickness | 0.3-3mm | |
Panel Width | ≥60mm | |
Panel Length | ≥150mm | |
Feeding Speed | 15m/min | |
Working Pressure | 0.6Mpa | |
Voltage | 380V/50HZ/3PH | |
Gluing Motor | 0.37KW/50HZ/1400RPM | |
End Cutting Motor | 0.37KW * 2/200HZ/12000RPM | |
Fine Trimming Motor | 0.75KW * 2/200HZ/12000RPM | |
Buffing Motor | 0.37KW * 2/50HZ/1400RPM | |
Conveyor Motor | 1.5KW | |
Glue Pot Heating Power | 1.5KW | |
Assistant Heating Power | 0.3KW | |
Lighting Power | 0.05KW | |
Total Power | 6.7KW | |
Dimension | 3650x770x1450mm | |
Wooden Case Package | 3700x870x1700mm |
