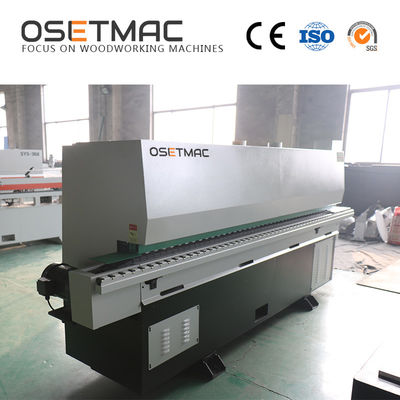

60mm Panel 380V/50HZ Wood Edge Sealing Machine

  • 60mm Panel 380V/50HZ Wood Edge Sealing Machine
  • 60mm Panel 380V/50HZ Wood Edge Sealing Machine
  • 60mm Panel 380V/50HZ Wood Edge Sealing Machine
  • 60mm Panel 380V/50HZ Wood Edge Sealing Machine
  • 60mm Panel 380V/50HZ Wood Edge Sealing Machine
Place of Origin CHINA
Brand Name OSETMAC
Certification CE
Model Number SYS-320B
Minimum Order Quantity Negotiable
Price Negotiate
Packaging Details wooden case or as request
Delivery Time 5-8 work days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 30000set per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

woodworking edge bander

,

edge banding trimming machine
Leave a Message
Product Description

Wood Edge Sealing Machines For Edge Sealing SYS-320B



SYS-320B Automatic edge banding machine for PVC Sideband



Automatic Edge Banding Machine SYS320B



SPECIFICATIONS
Model SYS-320B
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.37KW/50HZ/1400RPM
End Cutting Motor 0.37KW * 2/200HZ/12000RPM
Fine Trimming Motor 0.75KW * 2/200HZ/12000RPM
Buffing Motor 0.37KW * 2/50HZ/1400RPM
Conveyor Motor 1.5KW
Glue Pot Heating Power 1.5KW
Assistant Heating Power 0.3KW
Lighting Power 0.05KW
Total Power 6.7KW
Dimension 3650x770x1450mm
Wooden Case Package 3700x870x1700mm



60mm Panel 380V/50HZ Wood Edge Sealing Machine 0

60mm Panel 380V/50HZ Wood Edge Sealing Machine 1



60mm Panel 380V/50HZ Wood Edge Sealing Machine 2

60mm Panel 380V/50HZ Wood Edge Sealing Machine 3



60mm Panel 380V/50HZ Wood Edge Sealing Machine 4
