PLC Control 6.7KW Woodworking Edge Banding Machine

PLC Control 6.7KW Woodworking Edge Banding Machine
PLC Control 6.7KW Woodworking Edge Banding Machine PLC Control 6.7KW Woodworking Edge Banding Machine PLC Control 6.7KW Woodworking Edge Banding Machine PLC Control 6.7KW Woodworking Edge Banding Machine PLC Control 6.7KW Woodworking Edge Banding Machine

Large Image :  PLC Control 6.7KW Woodworking Edge Banding Machine

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE
Model Number: SYS-300
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: wooden case or as request
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000set per year

PLC Control 6.7KW Woodworking Edge Banding Machine

Description
High Light:

woodworking edge bander

,

edge banding trimming machine

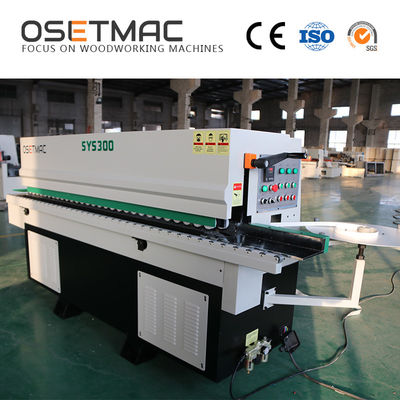

6.7KW Woodworking Edge Banding Machine PLC Control SYS-300



Automatic Edge Banding Machine SYS300



MODEL: SYS-300
Panel Thickness: 10-60mm
Edge Band Thickness: 0.4-3mm
Panel Width: ≥60mm
Panel Length: ≥150mm
Feeding Speed: 15m/min
Working Pressure: 0.6Mpa
Voltage: 380V/50HZ/3PH
Gluing Motor: 0.37KW 50HZ 1400RPM
End Cutting Motor: 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor: 0.75KW * 2 200HZ 12000RPM
Buffing Motor: 0.37KW * 2 50HZ 1400RPM
Conveyor Motor: 1.5KW Glue Pot Heating Power:1.5KW
Assistant Heating Power: 0.3KW Lighting Power: 0.05KW
Total Power: 6.7KW
Dimension: 3800x900x1680mm




PLC Control 6.7KW Woodworking Edge Banding Machine



PLC Control 6.7KW Woodworking Edge Banding Machine

PLC Control 6.7KW Woodworking Edge Banding Machine

Description:

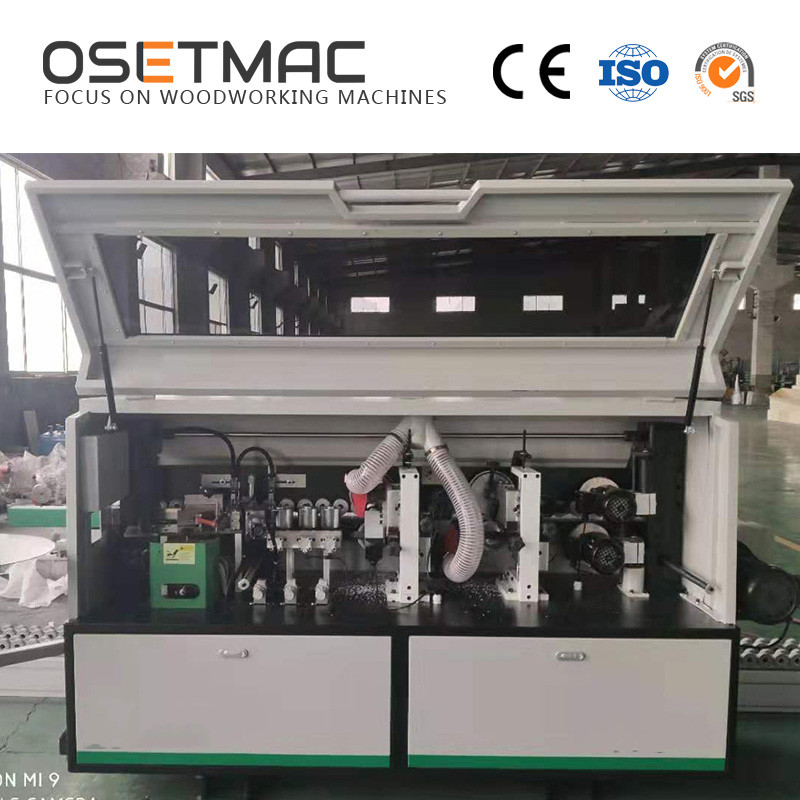

*5 functions:Gluing--end cutting--Fine--Trimming--Scraping-Buffing

*PLC control with touch screen (141*195mm)

*Working Voltage:380v/50HZ/3PH

*Taiwan"DELTA"brand inverter,PLC Touch Screen

*The entire machine is painted in a white color

*In the machine is mounted lights

PLC Control 6.7KW Woodworking Edge Banding Machine

PLC Control 6.7KW Woodworking Edge Banding Machine
