Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels
Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels

Large Image :  Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE
Model Number: SYS-568
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: wood case
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000sets/year

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels

Description
Voltage: 220V/380V Condition: New
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Edge Banding Machine Function: Gluing
High Light:

220V gluing Automatic Edge Bander

,

Wood Panels Automatic Edge Bander

,

Feeding 23m/Min woodworking edge bander

Factory Supply Wood Panels Automatic Edge Bander SYS-568

Automatic Edge band machine SYS-568 for various kinds of  panels



Parameters
Model SYS-568
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 200HZ 12000RPM
Corner Trimming Motor 0.37KW * 2 200HZ 12000RPM
0.75KW * 2 200HZ 12000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Glue Pot Heating Power 2.4KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 12.4KW
Dimension 5660*1000*1650mm
Wooden Crate Package 5760*1050*1760mm



Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 0

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 1

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 2

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 3

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 4

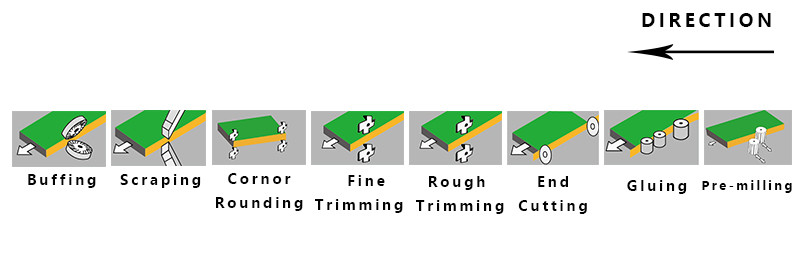

* 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
* Working Voltage: 380V/50HZ /3PH
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
*Honeywell travel switch, contactor, air switch.
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.
* Support customization for the machine appearance.

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 5

Loading Container :

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 6

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 7

Feeding 23m/Min Gluing Automatic Edge Bander For Wood Panels 8
