10-60mm Woodworking Edge Banding Machine With Siemens PLC

Place of Origin CHINA
Brand Name OSETMAC
Certification CE, ISO
Model Number SYS-868
Minimum Order Quantity 1 set
Price 23800-26800
Packaging Details wooden case
Delivery Time 15-30 working days
Supply Ability 300 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Black Functions 8 Full Functions
Brand OSETMAC Voltage 380V/415V/220V
Condition New Warranty 12 Months
After-sales Service Provided Video Technical Support,Online Support Type Edge Banding Machine
High Light

60mm Woodworking Edge Banding Machine

,

PLC Woodworking Edge Banding Machine

,

60mm plywood edge banding machine

Leave a Message
Product Description

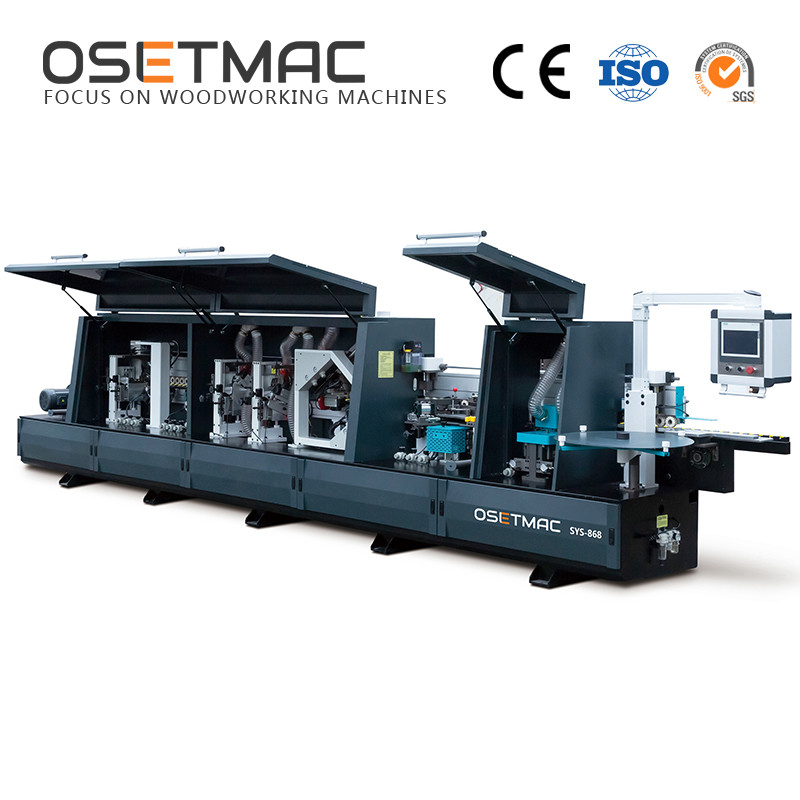

OSETMAC Woodworking Edge Banding Machine SYS-868 with Siemens PLC



OSETMAC Woodworking Edge Banding Machine SYS-868 Specifications



Model SYS-868
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH

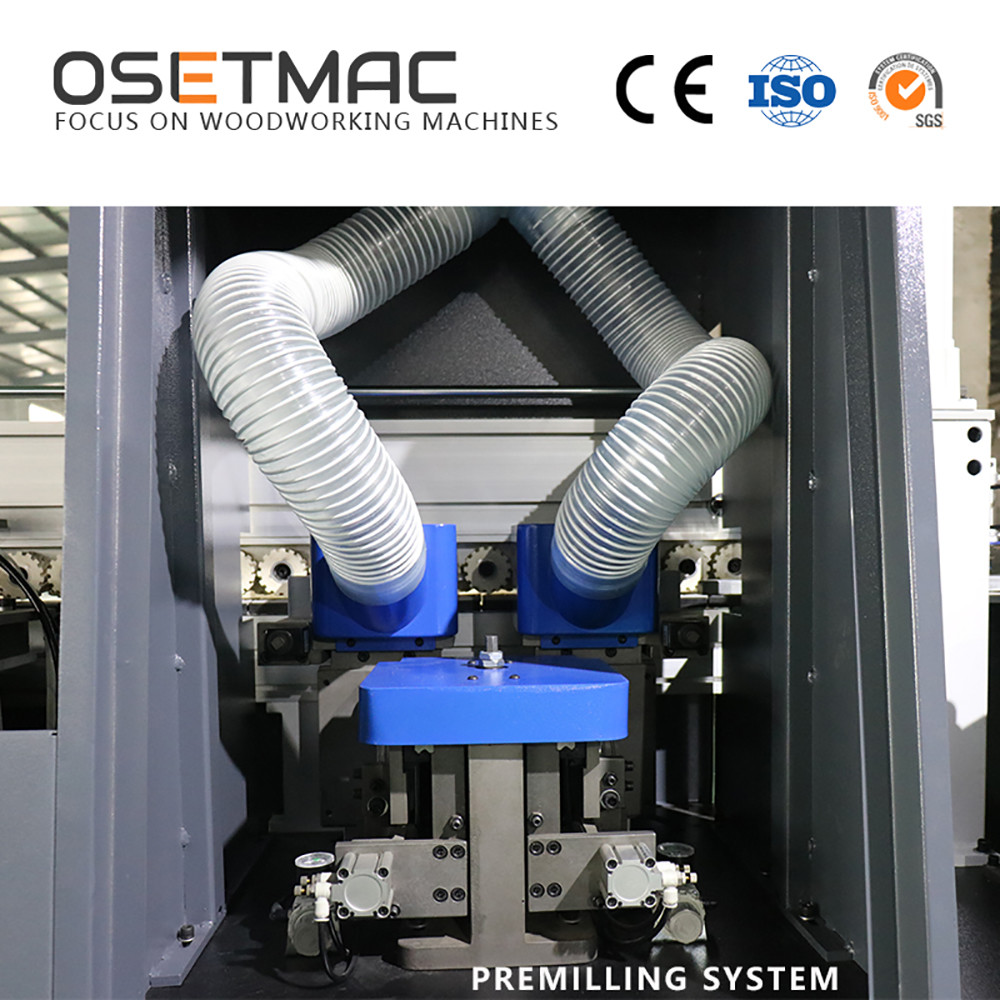

Pre-milling Motor 2.2KW * 2
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 200HZ 12000RPM
Corner Trimming Motor 0.37KW * 2 200HZ 12000RPM
0.75KW * 2 200HZ 12000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 3.7KW
Glue Pot Heating Power 2.4KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 16.62KW
Dimension 7350*800*1620mm
Wooden Crate Package 7450*900*1720mm

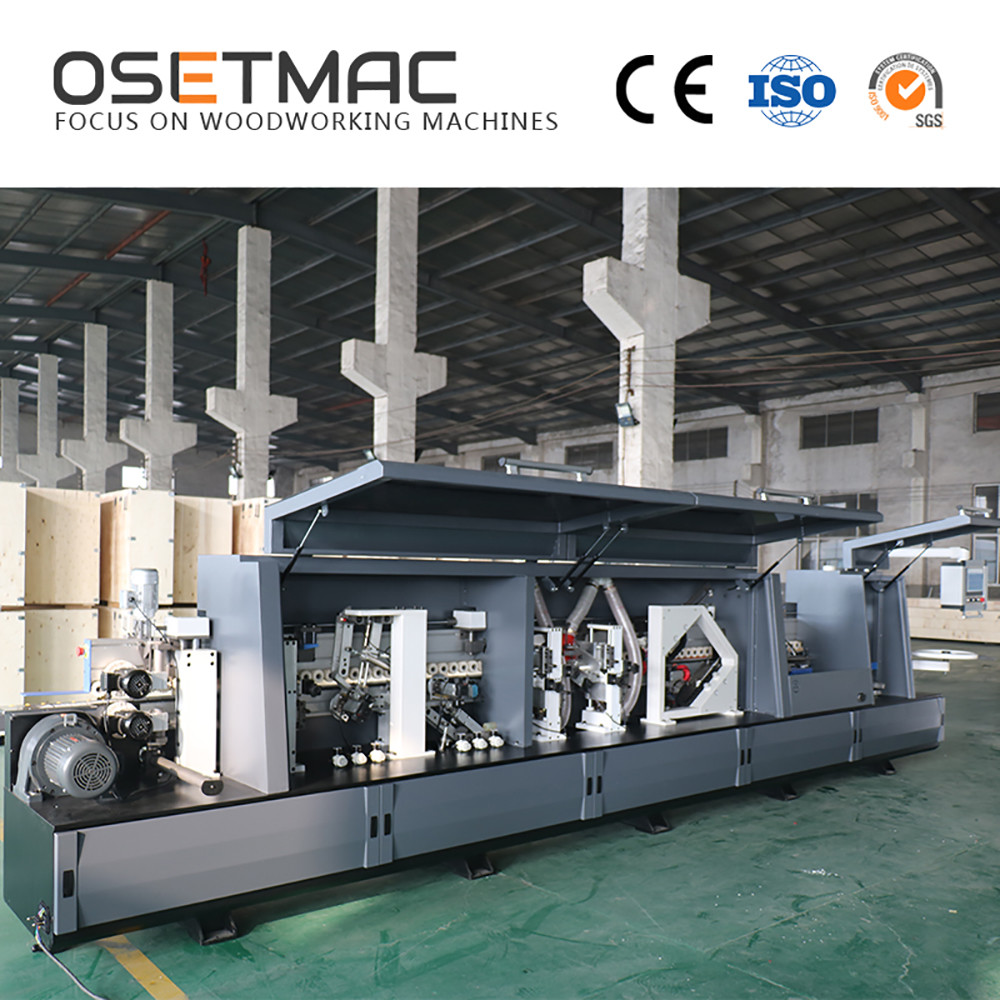

10-60mm Woodworking Edge Banding Machine With Siemens PLC 0

OSETMAC EDGE BANDING MACHINE SYS-868 FUCTIONS

10-60mm Woodworking Edge Banding Machine With Siemens PLC 1

OSETMAC EDGE BANDING MACHINE SYS-868 FEATURES

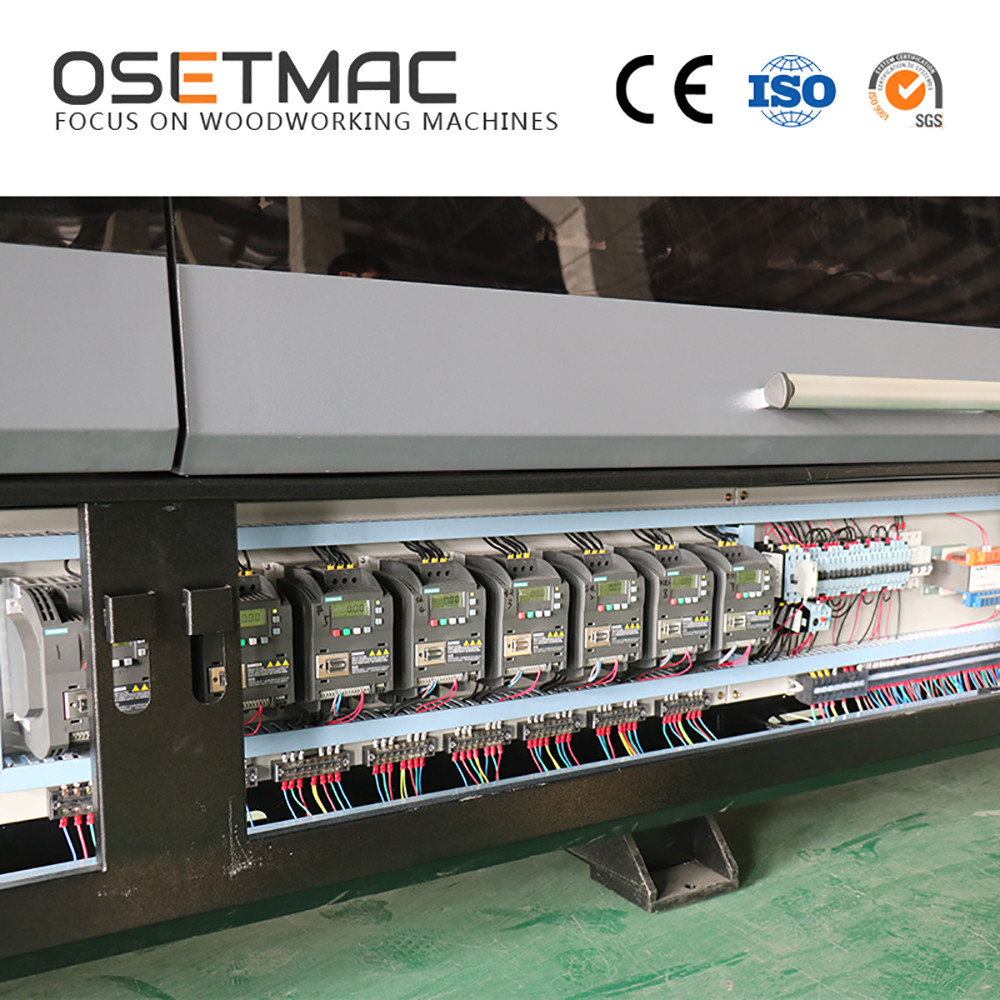

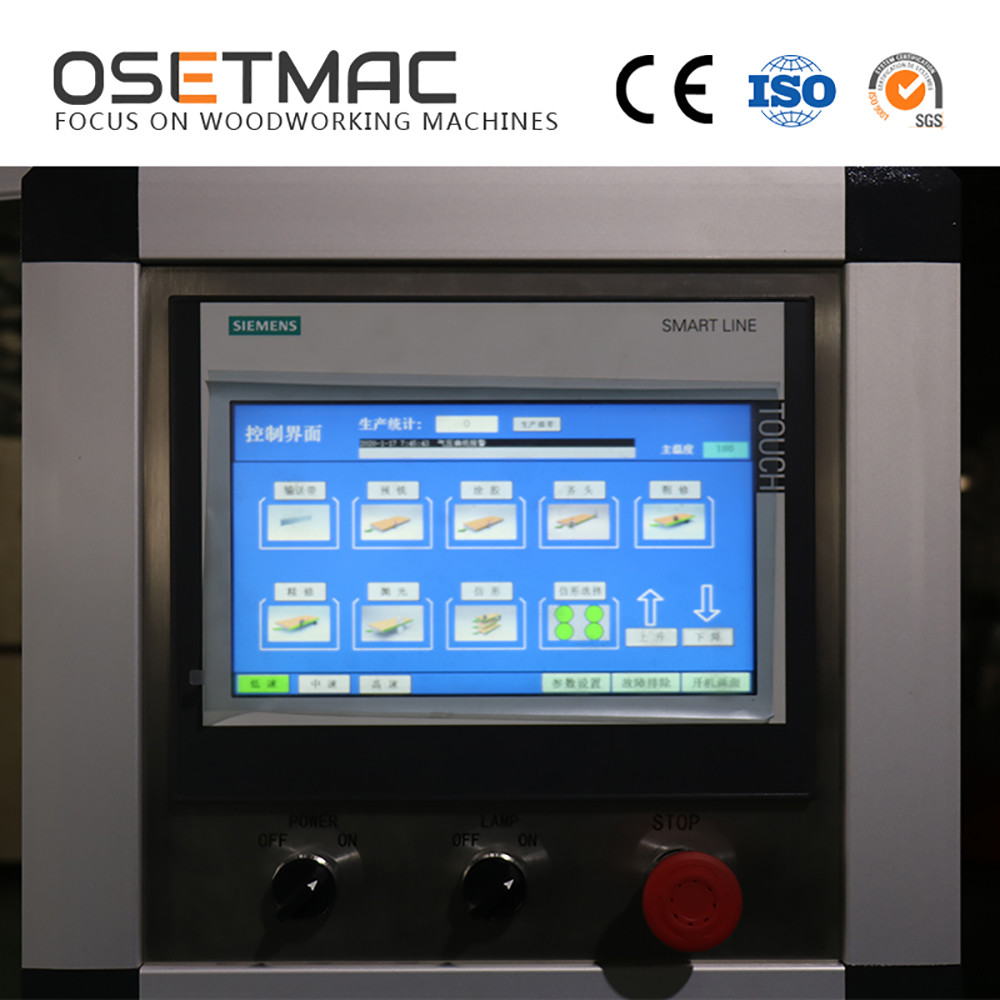

* Siemens inverter with Siemens PLC touch screen.
* Siemens electrics
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
* Honeywell travel switch, contactor, air switch.
* SMC valve, SMC air cylinder.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.
* Support customization for the machine appearance



10-60mm Woodworking Edge Banding Machine With Siemens PLC 210-60mm Woodworking Edge Banding Machine With Siemens PLC 3

10-60mm Woodworking Edge Banding Machine With Siemens PLC 410-60mm Woodworking Edge Banding Machine With Siemens PLC 510-60mm Woodworking Edge Banding Machine With Siemens PLC 6

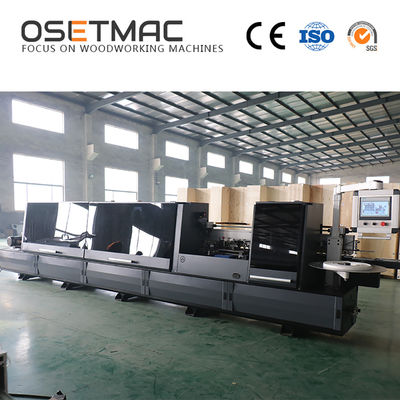

OSETMAC FACTORY SHOW

10-60mm Woodworking Edge Banding Machine With Siemens PLC 710-60mm Woodworking Edge Banding Machine With Siemens PLC 8
