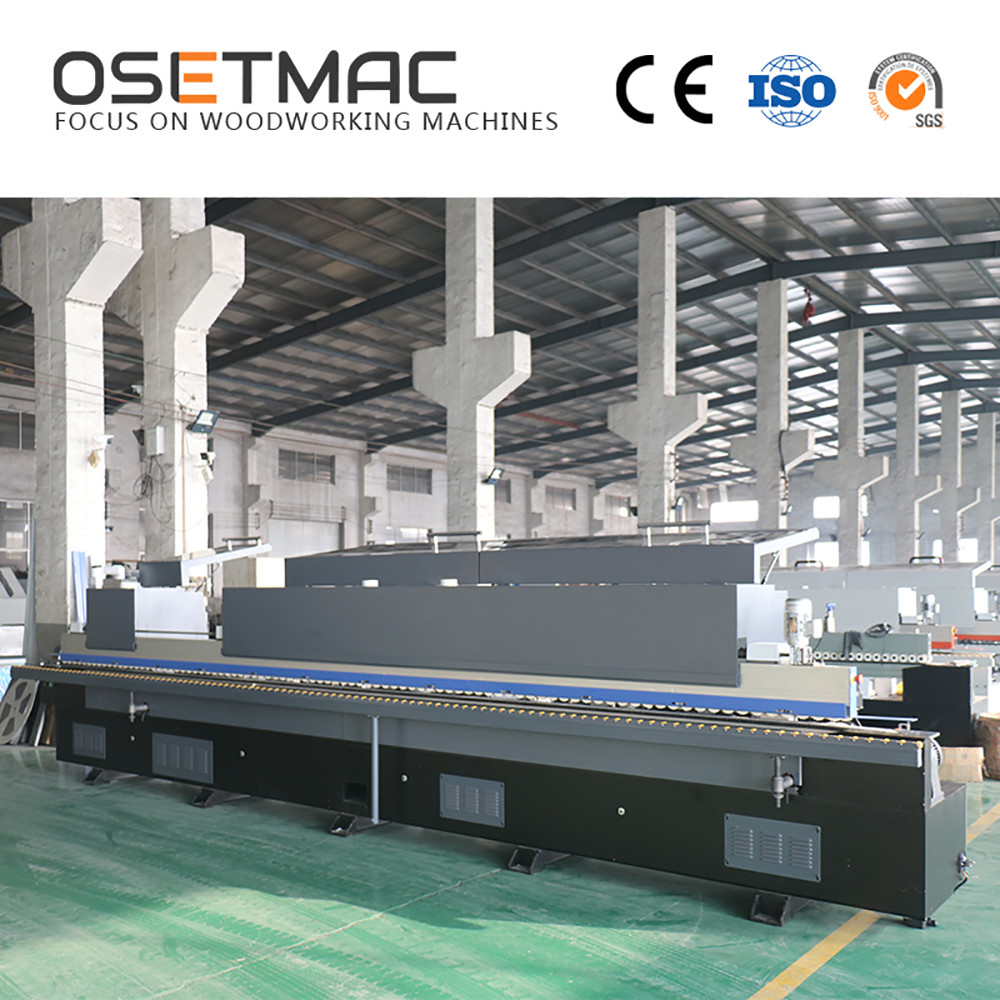

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions
Width 60mm PVC Woodworking Edge Banding Machine 7 Functions

Large Image :  Width 60mm PVC Woodworking Edge Banding Machine 7 Functions

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE
Model Number: SYS-468
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: wood case
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000sets/year

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions

Description
Type: 60mm Woodworking Edge Banding Machine Voltage: 220V/380V
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Feature: 7 Functions Function: Gluing
High Light:

60mm Woodworking Edge Banding Machine

,

7 Functions Woodworking Edge Banding Machine

,

60mm pvc edge banding machine

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions



Woodworking Edge Banding Machine Description:


* Woodworking Edge Banding Machine With 7 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
* Working Voltage: 380V/50HZ /3PH
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.



Woodworking Edge Banding Machine Parameters



Model SYS-468
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 200HZ 12000RPM
Corner Trimming Motor 0.37KW * 2 200HZ 12000RPM
0.75KW * 2 200HZ 12000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Glue Pot Heating Power 2.4KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 12.4KW
Dimension 5660*1000*1650mm
Wooden Crate Package 5760*1050*1760mm



Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 0

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 1

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 2

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 3

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 4

Loading Container :

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 5

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 6

Width 60mm PVC Woodworking Edge Banding Machine 7 Functions 7
