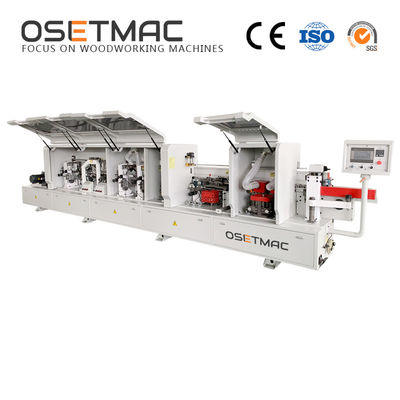

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming

  • 23m/Min Laminate Plywood Edge Banding Machine Rough Trimming
Place of Origin CHINA
Brand Name OSETMAC
Certification CE
Model Number SYS-568
Minimum Order Quantity Negotiable
Price Negotiate
Packaging Details wood case
Delivery Time 5-8working days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 30000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V/380V Condition New
Warranty One Year After-sales Service Provided Engineers Available To Service Machinery Overseas
Name Edge Banding Machine Function Gluing
High Light

23m/Min Plywood Edge Banding Machine

,

Laminate Plywood Edge Banding Machine

,

23m/Min laminate edge banding machine
Leave a Message
Product Description

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming



Plywood Edge Banding Machine Feature



● Adopt imported motor and high quality electrical component.
● High precision and work efficiency.
● Automatic and precise gluing procedure as well as integrated double finish.
● Glue evenly, conveying stability.



Parameters of Plywood Edge Banding Machine
Model SYS-568
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 200HZ 12000RPM
Corner Trimming Motor 0.37KW * 2 200HZ 12000RPM
0.75KW * 2 200HZ 12000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Glue Pot Heating Power 2.4KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 12.4KW
Dimension 5660*1000*1650mm
Wooden Crate Package 5760*1050*1760mm



23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 0

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 1

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 2

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 3

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 4

* 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
* Working Voltage: 380V/50HZ /3PH
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
*Honeywell travel switch, contactor, air switch.
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.
* Support customization for the machine appearance.

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 5

Loading Container :

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 6

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 7

23m/Min Laminate Plywood Edge Banding Machine Rough Trimming 8
