Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions

Certification
China QINGDAO OSET INTERNATIONAL TRADING CO., LTD. certification
China QINGDAO OSET INTERNATIONAL TRADING CO., LTD. certification
Customer Reviews
I have got the machines and the sliding table saw are really good quality.

—— Joro

I'm Online Chat Now

Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions

Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions
Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions

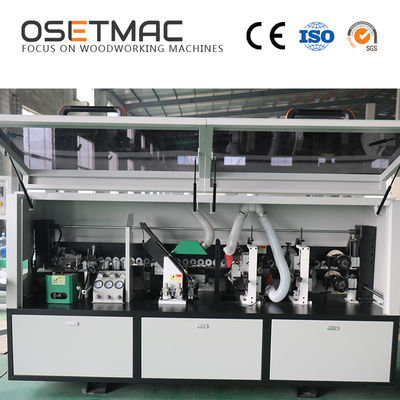

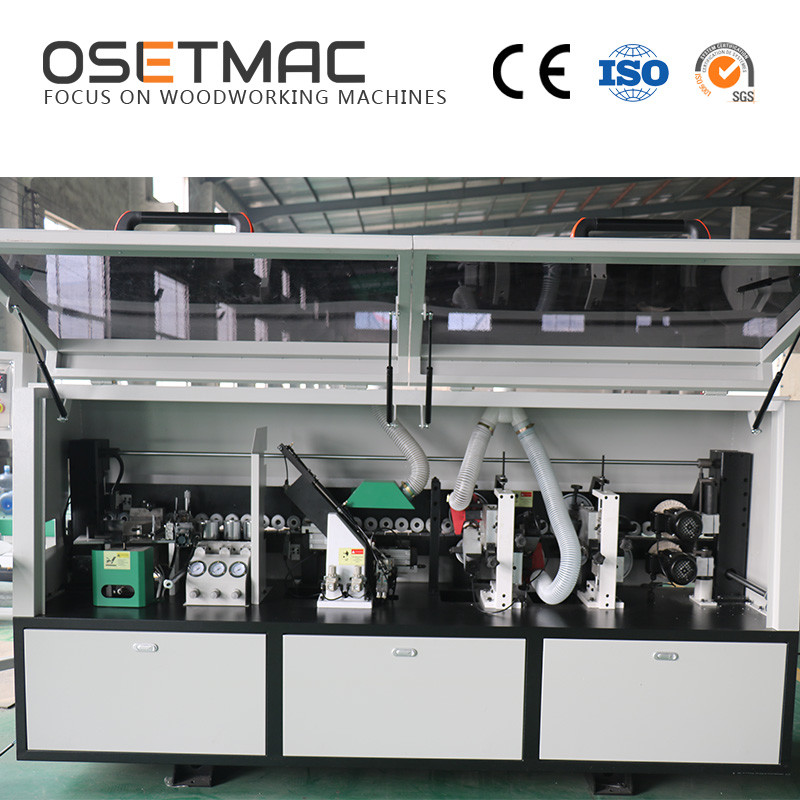

Large Image :  Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE
Model Number: SYS-300
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: wooden case or as request
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000set per year

Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions

Description
High Light:

60mm Automatic Edge Banding Machine

,

10mm Automatic Edge Banding Machine

,

5 Functions wood edge banding machine

Thickness 10mm-60mm Automatic Edge Banding Machine 5 Functions



Feature



1. Adopt imported motor and high quality electrical component.


2. High precision and work efficiency.

3. Automatic and precise gluing procedure as well as integrated double finish.

4. Glue evenly, conveying stability

MODEL: SYS-300
Panel Thickness: 10-60mm
Edge Band Thickness: 0.4-3mm
Panel Width: ≥60mm
Panel Length: ≥150mm
Feeding Speed: 15m/min
Working Pressure: 0.6Mpa
Voltage: 380V/50HZ/3PH
Gluing Motor: 0.37KW 50HZ 1400RPM
End Cutting Motor: 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor: 0.75KW * 2 200HZ 12000RPM
Buffing Motor: 0.37KW * 2 50HZ 1400RPM
Conveyor Motor: 1.5KW Glue Pot Heating Power:1.5KW
Assistant Heating Power: 0.3KW Lighting Power: 0.05KW
Total Power: 6.7KW
Dimension: 3800x900x1680mm




Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions 0



Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions 1

Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions 2

Description:

*5 functions:Gluing--end cutting--Fine--Trimming--Scraping-Buffing

*PLC control with touch screen (141*195mm)

*Working Voltage:380v/50HZ/3PH

*Taiwan"DELTA"brand inverter,PLC Touch Screen

*The entire machine is painted in a white color

*In the machine is mounted lights

Thickness 10mm-60mm Automatic Edge Banding Machine 5 functions 3
