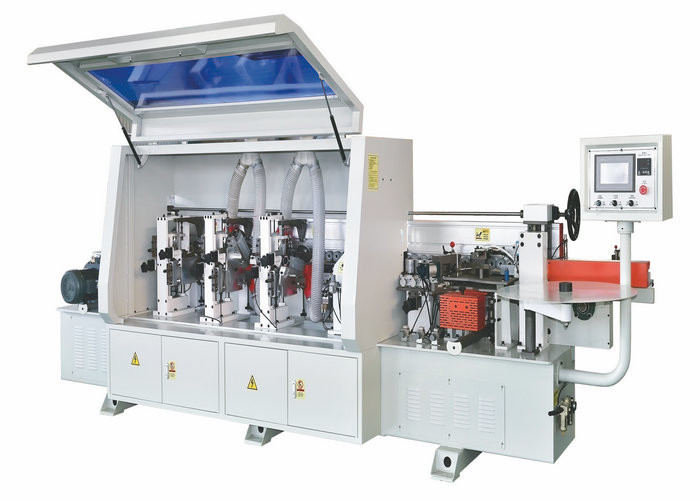

15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen
15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

Large Image :  15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

Product Details:
Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: SYS-365
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year

15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

Description
Name: Woodworking Edge Banding Machine After-sales Service Provided: Video Technical Support
Dimension(l*w*h): 8000*5000*1200MM Feeding Speed: 15-23 M/min,12-24m/min
Working Pressure: 3~6kg/cm Square Control: PLC Touch Screen
High Light:

23 M/min Woodworking Edge Banding Machine

,

15 M/min Woodworking Edge Banding Machine

,

PLC Woodworking Edge Banding Machine

15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

Quick Detail of Woodworking Edge Banding Machine :

(1) using imported quality engines and electric components
(2) Serialized products, a wide range of selection by customers

(3) High precision and efficiency

Description of Woodworking Edge Banding Machine:

  1. Full automatic with functions of : Gluing, End Cutting, Fine Trimming, Scraping, Buffing.
  2. This machine uses imported quality engines and electrics, which makes high performance and best quality-price ratio.
  3. High precision and easy-to-use features makes your work more efficient.
  4. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.

Woodworking Edge Banding Machine Specifications:


MODELSYS-365
Panel Thickness10-60mm
Edge Band Thickness0.4-3mm
Panel Width≥60mm
Panel Length≥150mm
Feeding Speed15-23m/min
Working Pressure0.6Mpa
Voltage380V/50HZ/3PH
Gluing Motor0.75KW 50HZ 1400RPM
End Cutting Motor0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor0.75KW * 4 300HZ 18000RPM
Buffing Motor0.37KW * 2 50HZ 1400RPM
Conveyor Motor2.2KW
Glue Pot Heating Power1.85KW
Assistant Heating Power0.45KW
Lighting Power0.08KW
Total Power8.3KW
Dimension3940x830x1610mm
Net Weight1300KGS



Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
