15m/Min Woodworking Edge Banding Machine For PVC Board

15m/Min Woodworking Edge Banding Machine For PVC Board
15m/Min Woodworking Edge Banding Machine For PVC Board 15m/Min Woodworking Edge Banding Machine For PVC Board

Large Image :  15m/Min Woodworking Edge Banding Machine For PVC Board

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE
Model Number: SYS-320B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: wooden case or as request
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000set per year

15m/Min Woodworking Edge Banding Machine For PVC Board

Description
High Light:

15m/Min Woodworking Edge Banding Machine

,

PVC Board Woodworking Edge Banding Machine

,

15m/Min pvc edge banding machine

15m/Min Woodworking Edge Banding Machine For PVC Board



The Woodworking Edge Banding Machine is used for edging the panel furniture ,it is used for covering the materials like PVC ,veneer ,wood on the edge of the panel furniture like MDF ,PLYWOOD ,partical board etc



Woodworking Edge Banding Machine SPECIFICATIONS
Model SYS-320B
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.37KW/50HZ/1400RPM
End Cutting Motor 0.37KW * 2/200HZ/12000RPM
Fine Trimming Motor 0.75KW * 2/200HZ/12000RPM
Buffing Motor 0.37KW * 2/50HZ/1400RPM
Conveyor Motor 1.5KW
Glue Pot Heating Power 1.5KW
Assistant Heating Power 0.3KW
Lighting Power 0.05KW
Total Power 6.7KW
Dimension 3650x770x1450mm
Wooden Case Package 3700x870x1700mm

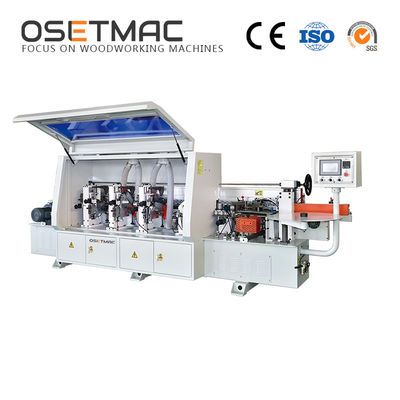

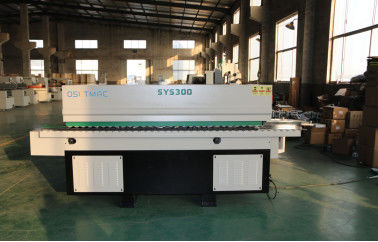

15m/Min Woodworking Edge Banding Machine For PVC Board 0

15m/Min Woodworking Edge Banding Machine For PVC Board 1



15m/Min Woodworking Edge Banding Machine For PVC Board 2

15m/Min Woodworking Edge Banding Machine For PVC Board 3
