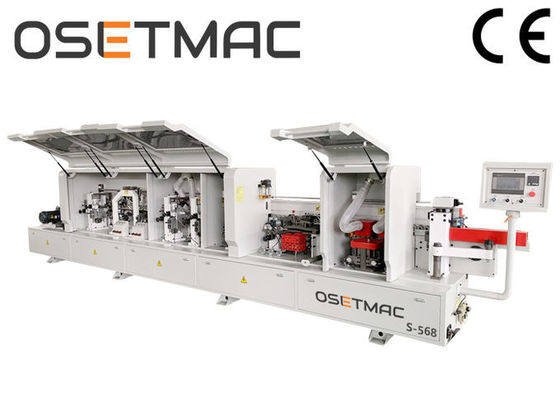

SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery

SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery
SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery

Large Image :  SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE
Model Number: SYS-300
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiate
Packaging Details: wooden case or as request
Delivery Time: 5-8 work days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000set per year

SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery

Description
Name: Automatic Edge Banding Machine
High Light:

MDF Automatic Edge Banding Machine

,

SYS-300 Automatic Edge Banding Machine

,

SYS-300 pvc edge banding machine

SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery



Automatic Edge Banding Machine Quick details


Panel Thickness: 10-60mm
Edge Band Thickness: 0.4-3mm
Panel Width: ≥60mm
Panel Length: ≥150mm
Feeding Speed: 15m/min
Working Pressure: 0.6Mpa
Voltage: 380V/50HZ/3PH
Gluing Motor: 0.37KW 50HZ 1400RPM
End Cutting Motor: 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor: 0.75KW * 2 200HZ 12000RPM
Buffing Motor: 0.37KW * 2 50HZ 1400RPM
Conveyor Motor: 1.5KW Glue Pot Heating Power:1.5KW
Assistant Heating Power: 0.3KW Lighting Power: 0.05KW
Total Power: 6.7KW
Dimension: 3800x900x1680mm

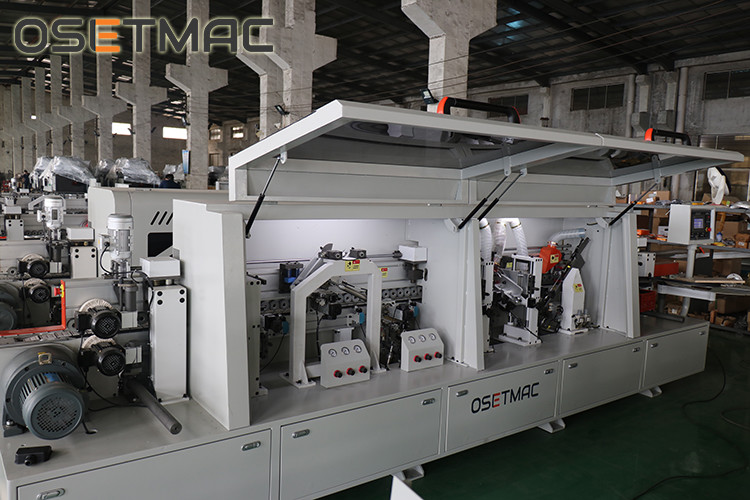

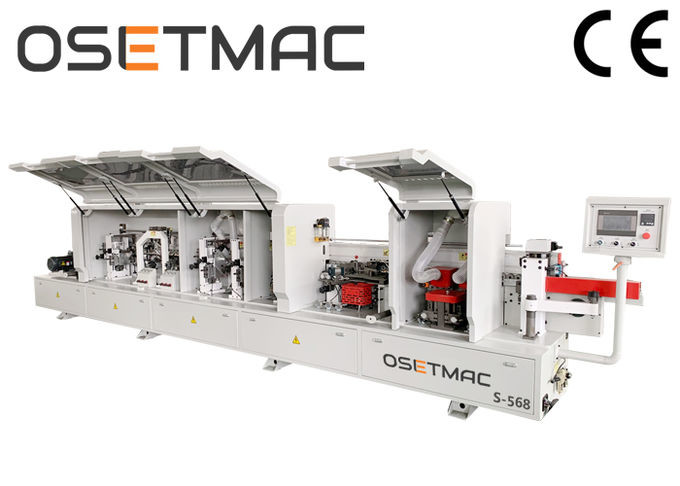

SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery 0



SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery 1

SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery 2

Description:

*5 functions:Gluing--end cutting--Fine--Trimming--Scraping-Buffing

*PLC control with touch screen (141*195mm)

*Working Voltage:380v/50HZ/3PH

*Taiwan"DELTA"brand inverter,PLC Touch Screen

*The entire machine is painted in a white color

*In the machine is mounted lights

SYS-300 MDF Automatic Edge Banding Machine Woodworking Machinery 3
