Automatic Woodworking Edge Banding Machine PVC Melamine Board

Place of Origin Qingdao, China
Brand Name OSETMAC
Certification CE,ISO
Model Number SYS-320
Minimum Order Quantity 1
Price Negotiable
Packaging Details Seaworthy wooden case
Delivery Time 15 days
Payment Terms T/T, L/C
Supply Ability 3000 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V/380V After-sales Service Provided Field Maintenance And Repair Service
Type Edge Banding Machine Panel Thickness 10-60mm
Name Edge Trimming Saw Machine Feeding Speed 12-24m/min
High Light

Automatic Woodworking Edge Banding Machine

,

PVC Woodworking Edge Banding Machine

,

Melamine pvc edge banding machine

Leave a Message
Product Description

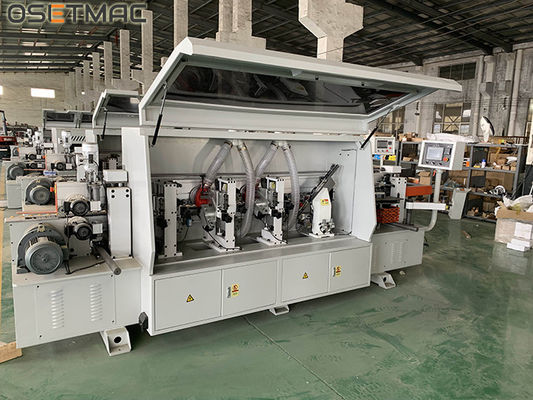

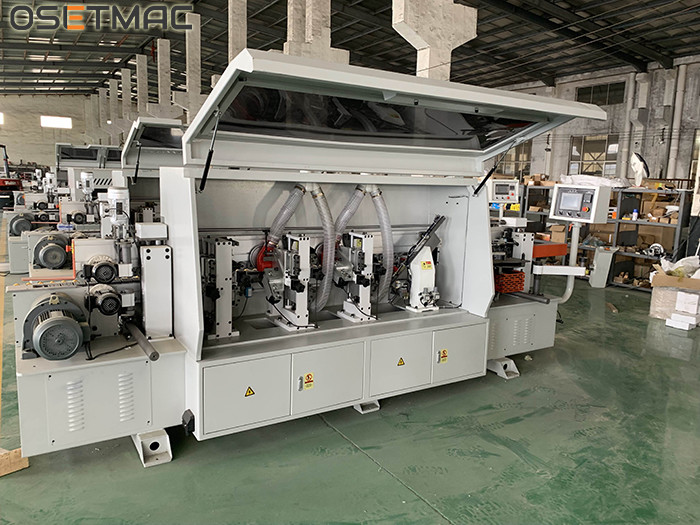

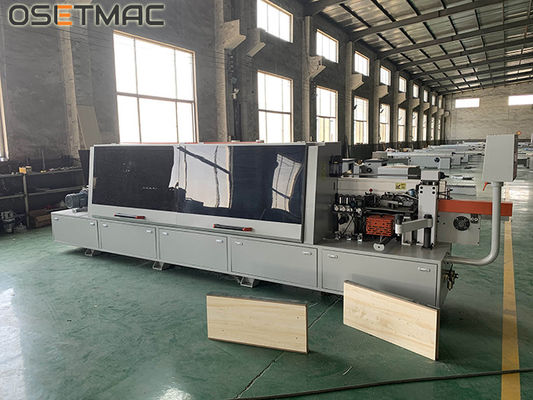

Automatic Woodworking Edge Banding Machine PVC Melamine Board





Product Description



This Woodworking Edge Banding Machine is suitable for edge banding of MDF, particleboard, solid wood board, ecological board, plywood, etc.



Advantage:

  1. Full automatic with functions of : Gluing, End Cutting, Fine Trimming, Scraping, Buffing.
  2. This machine uses imported quality engines and electrics, which makes high performance and best quality-price ratio.
  3. High precision and easy-to-use features makes your work more efficient.
  4. This is an economic model with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
  5. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.


Specifications:



MODEL SYS-320
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.37KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor 0.75KW * 2 300HZ 18000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 1.5KW
Glue Pot Heating Power 1.5KW
Assistant Heating Power 0.3KW
Lighting Power 0.05KW
Total Power 6.7KW
Dimension 3120x670x1270mm
Net Weight 700KGS





Competitive Advantage:

  1. This new model edge banding machine is small-sized with automatic function, which can load 10 sets in one 20’ GP container and 20 sets in one 40’ GP container.
  2. We can customize the outlook and functions of the machine according to your requirement.
  3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
