Width 60mm Woodworking Edge Banding Machine with 8 Functions

Place of Origin CHINA
Brand Name OSETMAC
Certification CE
Model Number SYS-568
Minimum Order Quantity Negotiable1SET
Price 18000USD
Packaging Details wooden case
Delivery Time 5-8working days
Payment Terms L/C, T/T, MoneyGram, MoneyGram

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

60mm Woodworking Edge Banding Machine

,

8 Functions Woodworking Edge Banding Machine

,

60mm industrial edge banding machine

Leave a Message
Product Description

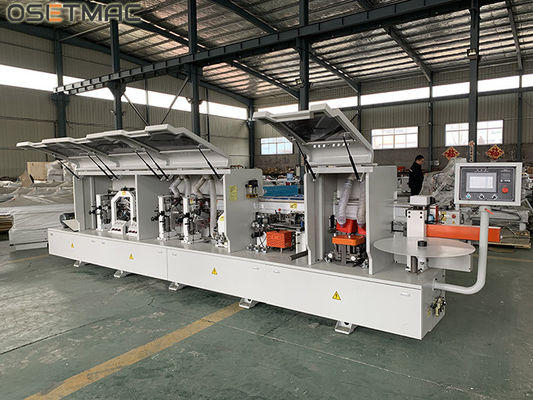

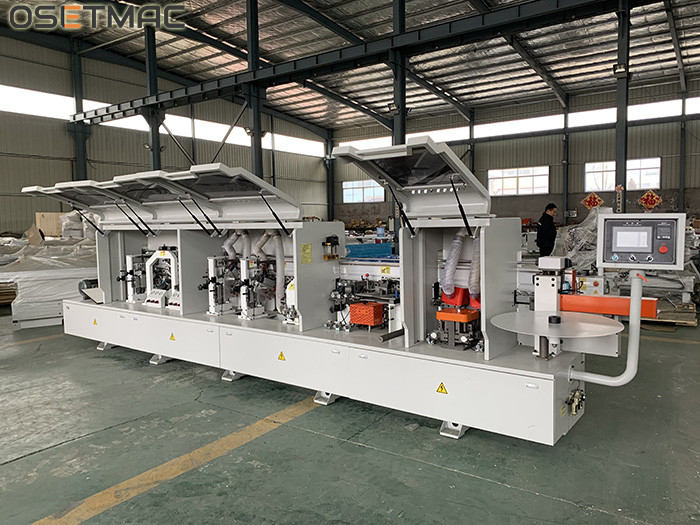

Width 60mm Woodworking Edge Banding Machine With 8 Functions



Width 60mm Woodworking Edge Banding Machine with 8 Functions 0Description of Woodworking Edge Banding Machine :


* 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* The conveyor speed can be adjusted from 13-25m/min
*Honeywell travel switch, contactor, air switch.
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* Support customization for the machine appearance.



Parameters
Model SYS-568
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Pre-milling Motor 2.2KW * 2
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 200HZ 12000RPM
Corner Trimming Motor 0.37KW * 2 200HZ 12000RPM
0.75KW * 2 200HZ 12000RPM

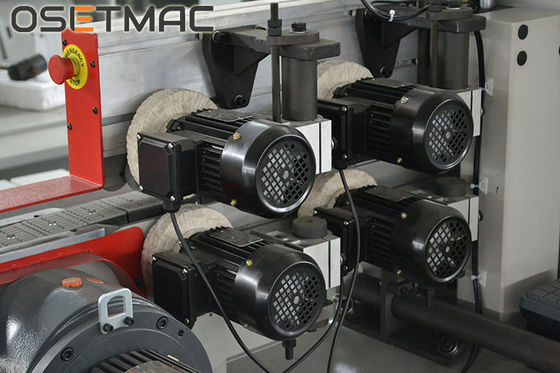

Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 3.7KW
Glue Pot Heating Power 2.4KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 16.62KW
Dimension 6700*1000*1650mm
Wooden Crate Package 6800*1050*1760mm
