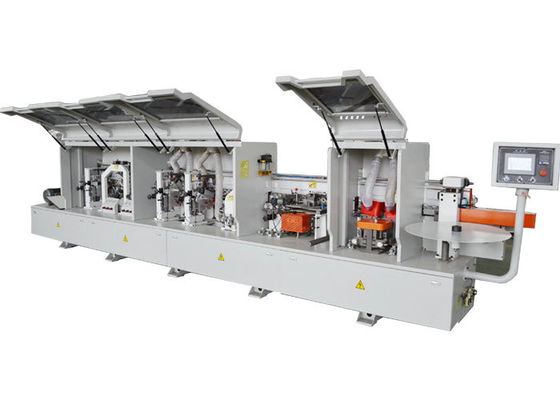

Large Image :  MDF PLYWOOD Furniture Edge Banding Machine With 8 Full Functions

Product Details:
Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE, ISO
Model Number: SYS-568
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD5000-15000/SET
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 sets per year

MDF PLYWOOD Furniture Edge Banding Machine With 8 Full Functions

Description
Name: Furniture Edge Banding Machine Weight: 2100kg
Warranty: 12 Months Panel: ≥60mm
Voltage: 380V/50HZ/3PH Model: SYS-568
High Light:

PLYWOOD Furniture Edge Banding Machine

,

MDF Furniture Edge Banding Machine

,

8 Functions Edge Banding Machine

MDF PLYWOOD Furniture Edge Banding Machine With 8 Full Functions



Furniture Edge Banding Machine Function



automatic plate feeding, double-sided gluing, upper and lower polishing, automatic head and tail trimming, bending and
straigtening



Furniture Edge Banding Machine Description:

  1. Full automatic with functions of : Gluing, End Cutting, Rough Trimming,Fine Trimming, Track Trimming, Scraping, Buffing.
  2. This machine uses imported quality engines and electrics, which make sure of the high performance and stability of the machine.
  3. High precision and easy-to-use features makes your work more efficient.
  4. This model has best quality-price ratio with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
  5. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.



Furniture Edge Banding Machine Applications:



This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.





Specifications:



MODEL SYS-468
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 300HZ 18000RPM
Track Trimming Motor 0.37KW*2
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Lifting Motor 0.37KW
Glue Pot Heating Power 1.85KW
Assistant Heating Power 0.45KW
Lighting Power 0.16KW
Total Power 11.0KW
Dimension 5660x830x1610mm
Net Weight 2100KGS





Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
