xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380v | Dimension(L*W*H) | 3155x730x1350mm |
| Power (kW) | 6.3KW | Weight (KG) | 820 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works | Warranty | 1 Year |
| Function | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points | Long Service Life |
| Panel Feed Speed(m/min) | 15 M/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Panel Thickness | 10-60mm | Panel Width | ≥60mm |
| Panel Length | ≥150mm | Workign Pressure | 0.6Mpa |
| Edge Thickness | 0.3-3mm | Gluing Motor | 0.37KW/50HZ/1400RPM |
| End Cutting Motor | 0.37KW * 2/200HZ/12000RPM | Fine Trimming Motor | 0.37KW * 2/50HZ/1400RPM |
| Conveyor Motor | 1.5KW | Gluing Pot Heating Power | 1.5KW |
| After-sales Service Provided | Video Technical Support | After Warranty Service | Video Technical Support, Online Support |
| Local Service Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea | Showroom Location | None |
| Marketing Type | Ordinary Product | Machinery Test Report | Provided |
Product Description

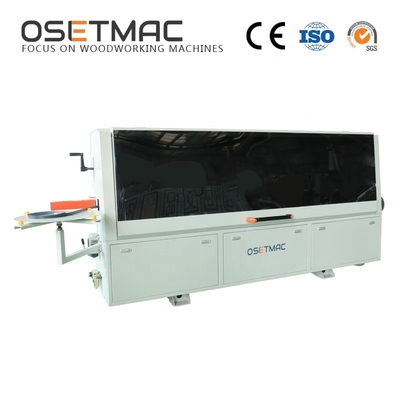

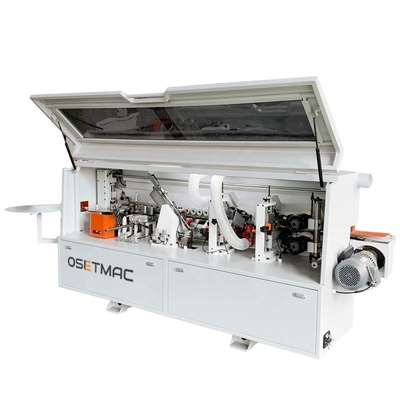

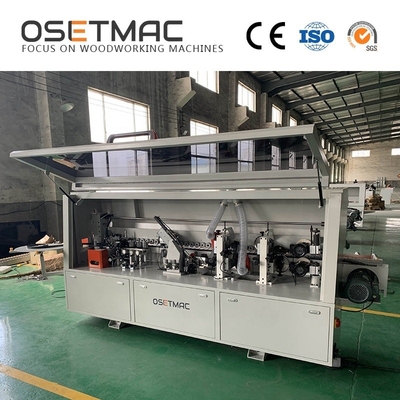

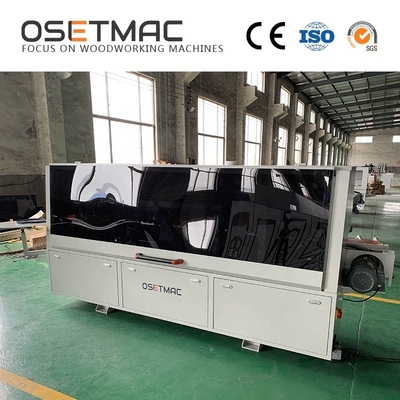

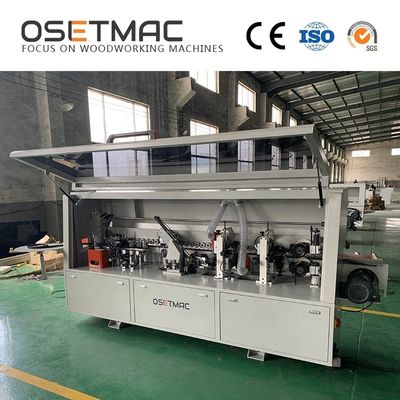

Automatic Edge Banding Machine SYS-320
Main Technical Parameter
Model | SYS-320 | ||
Panel Thickness | 10-60mm | ||
Edge Band Thickness | 0.3-3mm | ||
Panel Width | ≥60mm | ||
Panel Length | ≥150mm | ||
Feeding Speed | 15m/min | ||
Working Pressure | 0.6Mpa | ||
Voltage | 380V/50HZ/3PH | ||
Gluing Motor | 0.37KW/50HZ/1400RPM | ||
End Cutting Motor | 0.37KW * 2/200HZ/12000RPM | ||
Fine Trimming Motor | 0.37KW * 2/200HZ/12000RPM | ||
Buffing Motor | 0.37KW * 2/50HZ/1400RPM | ||
Conveyor Motor | 1.5KW | ||
Glue Pot Heating Power | 1.5KW | ||
Assistant Heating Power | 0.3KW | ||
Lighting Power | 0.05KW | ||
Total Power | 6.3KW | ||
Dimension | 3155x730x1350mm | ||
Wooden Case Package | 3250x870x1450mm | ||
Weight | 820KG | ||
Packing&Shipping
After Sales Service
Our Service
The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
