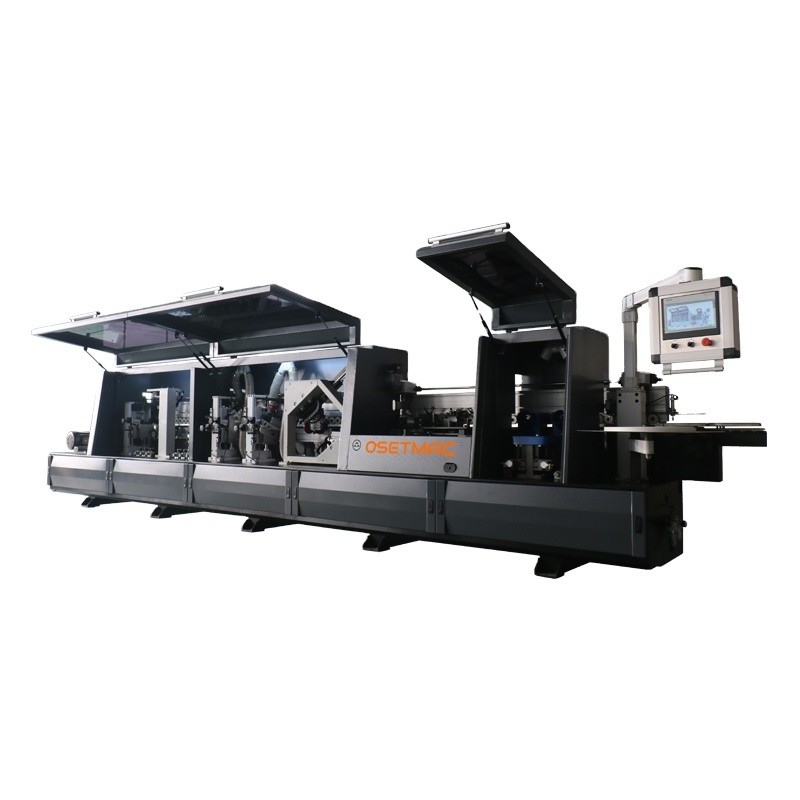

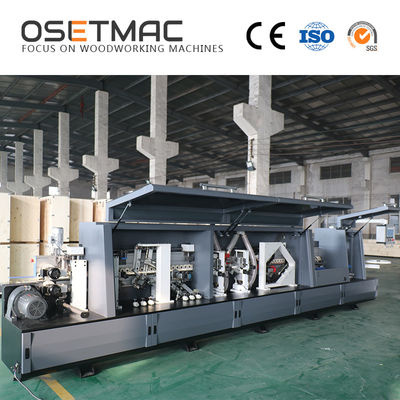

Panel Length ≥150mm Automatic Edge Banding Machine with Siemens Electrical SYS-868
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380v | Dimension(L*W*H) | 7350*800*1620mm |
| Power (kW) | 16.62KW | Weight (KG) | 2090 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works | Warranty | 1 Year |
| Function | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points | Long Service Life |
| Panel Feed Speed(m/min) | 23m/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Use | Plywood Production | Panel Thickness | 10-60mm |
| Panel Width | ≥60mm | Panel Length | ≥150mm |
| Workign Pressure | 0.6Mpa | Edge Thickness | 0.3-3mm |
| Gluing Motor | 0.75KW 50HZ 1400RPM | End Cutting Motor | 0.37KW * 2 200HZ 12000RPM |
| Fine Trimming Motor | 0.75KW * 4 200HZ 12000RPM | Corner Trimming Motor | 0.75KW * 4 200HZ 12000RPM |
| Gluing Pot Heating Power | 2.4KW | Port | QINGDAO |
Product Description
Product Description
Automatic Edge Banding Machine SYS-868
Main Technical Parameter
Parameters | ||||
Model | SYS-868 | |||
Panel Thickness | 10-60mm | |||
Edge Band Thickness | 0.3-3mm | |||
Panel Width | ≥60mm | |||
Panel Length | ≥150mm | |||
Feeding Speed | 15-23m/min | |||
Working Pressure | 0.6Mpa | |||
Voltage | 380V/50HZ/3PH | |||
Pre-milling Motor | 2.2KW * 2 | |||
Gluing Motor | 0.75KW 50HZ 1400RPM | |||
End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | |||
Trimming Motor | 0.75KW * 4 200HZ 12000RPM | |||
Corner Trimming Motor | 0.37KW * 2 200HZ 12000RPM 0.75KW * 2 200HZ 12000RPM | |||
Buffing Motor | 0.37KW * 2 50HZ 1400RPM | |||
Conveyor Motor | 3.7KW | |||
Glue Pot Heating Power | 2.4KW | |||
Lighting Power | 0.05KW | |||
Lifting Motor | 0.25KW | |||
Total Power | 16.62KW | |||
Dimension | 7350*800*1620mm | |||
Wooden Case Package | 7450*900*1720mm | |||
Our Advantages
Features of SYS-868

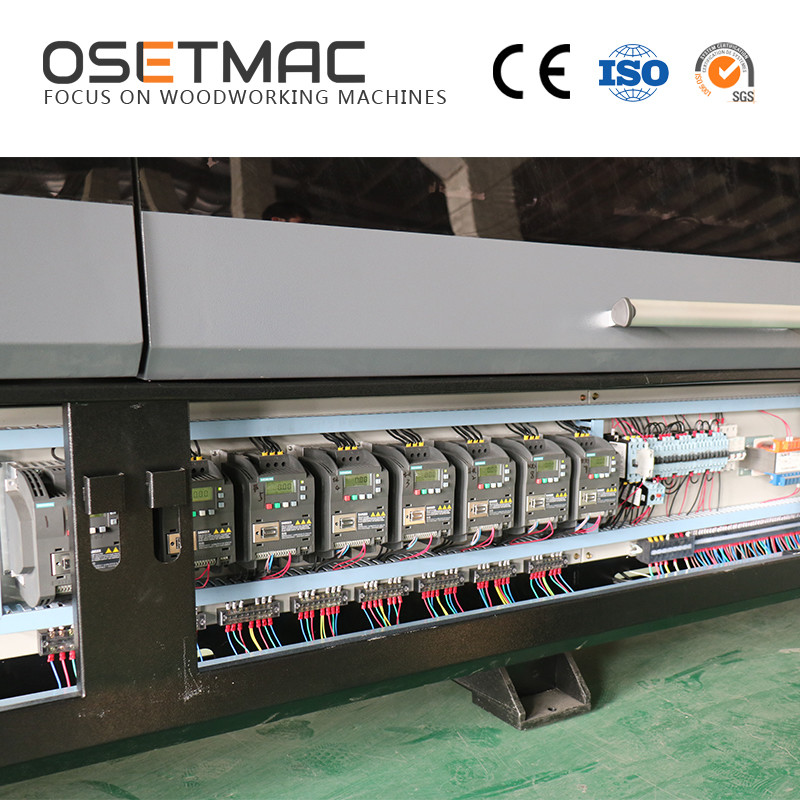

* 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * Siemens electrics * CC highspeed motor. * Honeywell travel switch, contactor, air switch. * SMC valve, SMC air cylinder. * Support customization for the machine appearance.
Advantage 2

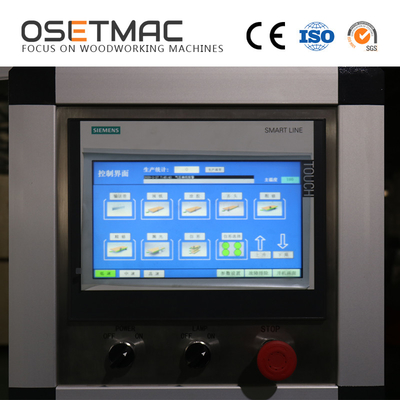

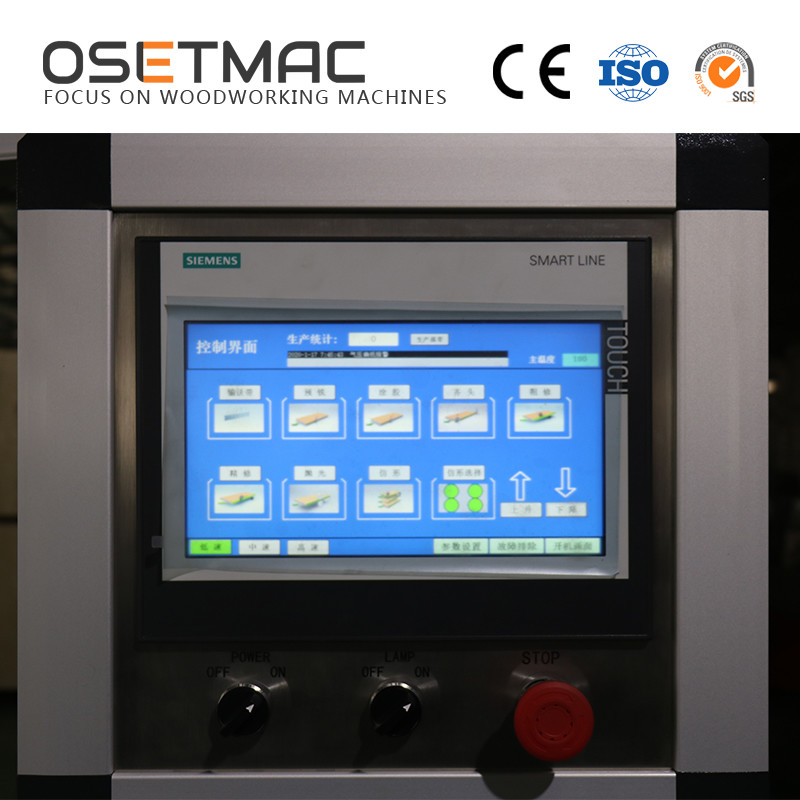

* Siemens inverter with Siemens PLC touch screen.
Advantage 3
* The conveyor speed can be adjusted from 13-25m/min
Advantage 4
*With pre-milling function ,better work effect
Advantage 5
*14mm high strenth steel sheet for the whole machine.
Advantage 6
* With automatic oil feeder.
* In the machine is mounted lights.

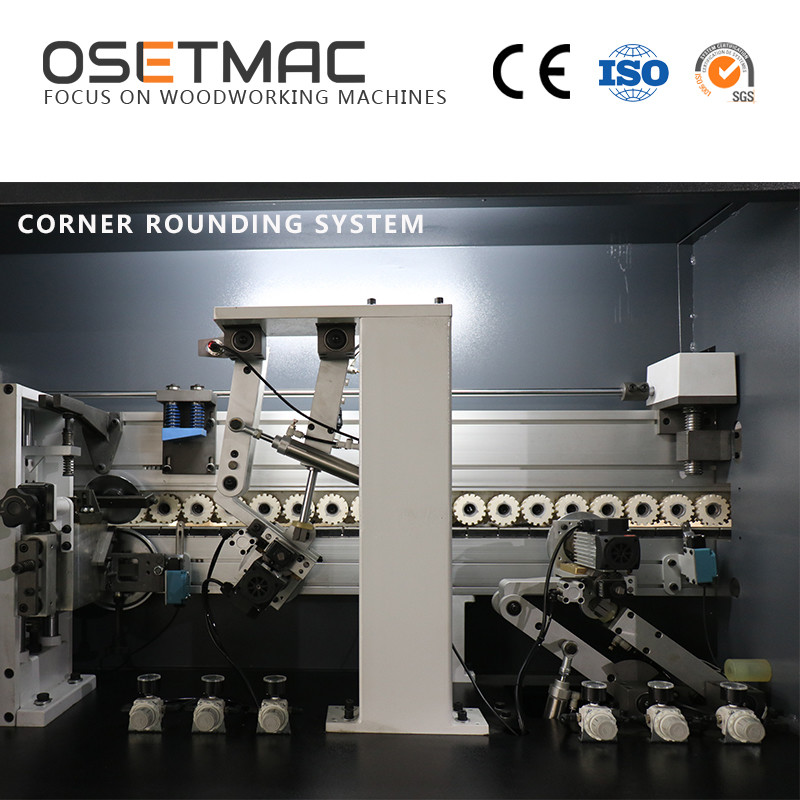

*corner rounding system
Packing&Shipping
After Sales Service
Our Service
The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
