Edge Thickness 0.3-3mm SYS-360 6 Functions Automatic Feeding Edge Bander 4100x800x1560mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380v, 380v 50HZ 3 Ph | Dimension(L*W*H) | 4100x800x1560mm |
| Power (kW) | 7.4KW | Weight (KG) | 1200 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works | Warranty | 1 Year |
| Function | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points | Long Service Life |
| Panel Feed Speed(m/min) | 25 M/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Panel Thickness | 10-60mm | Panel Width | ≥60mm |
| Panel Length | ≥150mm | Workign Pressure | 0.6Mpa |
| Edge Thickness | 0.3-3mm | HS Code | 8465100000 |
| Gluing Pot Heating Power | 1.5KW | Conveyor Motor | 1.5kw |
| After-sales Service Provided | Video Technical Support | After Warranty Service | Video Technical Support, Online Support |
| Local Service Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea | Showroom Location | Malaysia, None |
| Marketing Type | Ordinary Product | Machinery Test Report | Provided |
| Port | Qingdao Port |
Product Description
Product Description

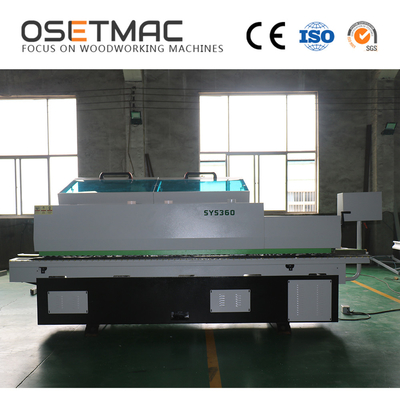

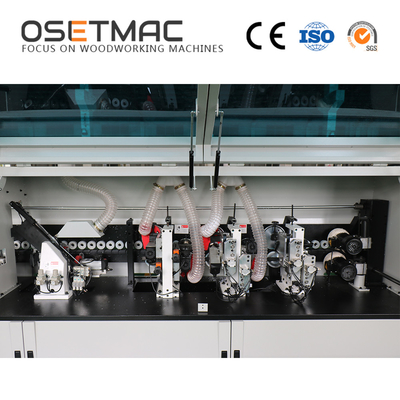

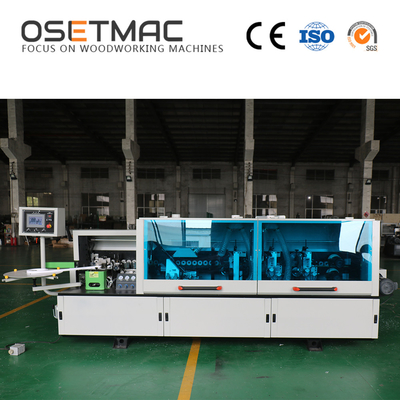

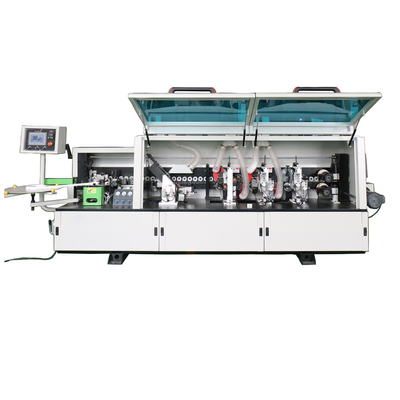

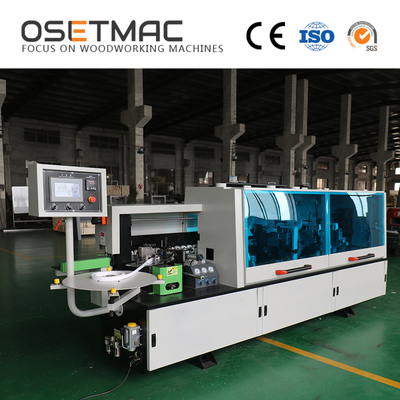

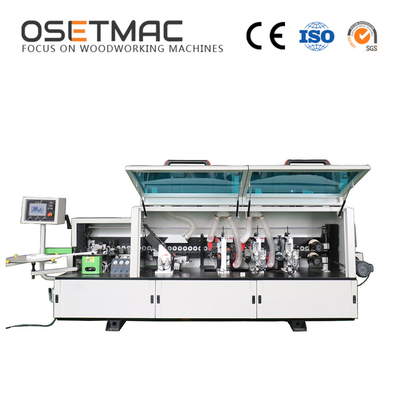

Automatic Edge Banding Machine SYS-360
Main Technical Parameter
SPECIFICATIONS | ||||
Model | SYS-360 | |||
Panel Thickness | 10-60mm | |||
Edge Band Thickness | 0.3-3mm | |||
Panel Width | ≥60mm | |||
Panel Length | ≥150mm | |||
Feeding Speed | 15m/min | |||
Working Pressure | 0.6Mpa | |||
Voltage | 380V/50HZ/3PH | |||
Gluing Motor | 0.37KW/50HZ/1400RPM | |||
End Cutting Motor | 0.37KW * 2/200HZ/12000RPM | |||
Rough Trimming Motor | 0.55KW * 2/200HZ/12000RPM | |||
Fine Trimming Motor | 0.55KW * 2/200HZ/12000RPM | |||
Buffing Motor | 0.37KW * 2/50HZ/1400RPM | |||
Conveyor Motor | 1.5KW | |||
Glue Pot Heating Power | 1.5KW | |||
Assistant Heating Power | 0.3KW | |||
Lighting Power | 0.05KW | |||
Total Power | 7.4KW | |||
Dimension | 4100x800x1560mm | |||
Wooden Case Package | 3900x870x1700mm | |||
Our Advantages
Features of SYS-360
Descriptions * 6 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * PLC Touch Screen * CC highspeed motor. *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
Packing&Shipping
After Sales Service
Our Service
The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
Our Services & Strength
Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
