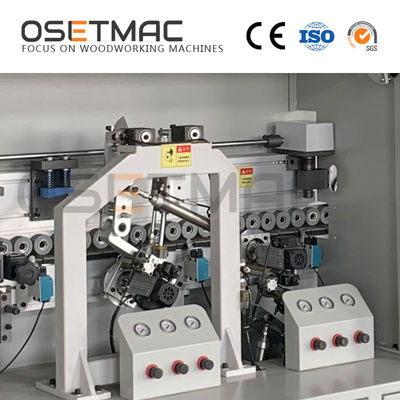

1820 kg OSETMAC Woodworking Edge Banding Machine SYS-468 PVC Edge Sealing Machine for Furniture
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380v | Dimension(L*W*H) | 5670x800x1620mm |
| Power (kW) | 12.4KW | Weight (KG) | 1820 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works | Warranty | 1 Year |
| Function | Gluing | Key Selling Points | Long Service Life |
| Panel Feed Speed(m/min) | 25m/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Use | Plywood Production | Name | Eage Banding Machine |
| Application | Plywood Produciton | Keywords | Full-automatic Edge Banding Machine |
Product Description
Product Description

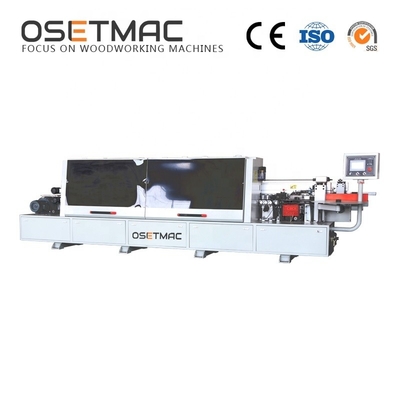

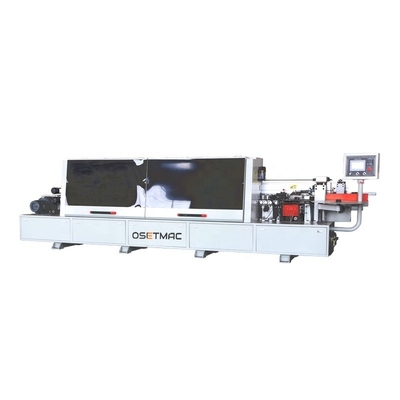

Automatic Edge Banding Machine SYS-468
Main Technical Parameter
Parameters | ||||
Model | SYS-468 | |||
Panel Thickness | 10-60mm | |||
Edge Band Thickness | 0.3-3mm | |||
Panel Width | ≥60mm | |||
Panel Length | ≥150mm | |||
Feeding Speed | 15-23m/min | |||
Working Pressure | 0.6Mpa | |||
Voltage | 380V/50HZ/3PH | |||
Gluing Motor | 0.75KW 50HZ 1400RPM | |||
End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | |||
Trimming Motor | 0.75KW * 4 200HZ 12000RPM | |||
Corner Trimming Motor | 0.37KW * 2 200HZ 12000RPM 0.75KW * 2 200HZ 12000RPM | |||
Buffing Motor | 0.37KW * 2 50HZ 1400RPM | |||
Conveyor Motor | 2.2KW | |||
Glue Pot Heating Power | 2.4KW | |||
Lighting Power | 0.05KW | |||
Lifting Motor | 0.25KW | |||
Total Power | 12.4KW | |||
Dimension | 5670*800*1620mm | |||
Wooden Crate Package | 5770*900*1720mm | |||
Our Advantages
Features of SYS-468

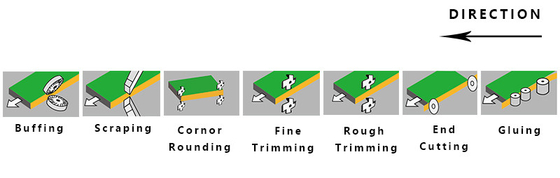

Description： * 7 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor speed can be adjusted from 13-25m/min *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
Packing&Shipping
After Sales Service
Our Service
The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
Our Services & Strength
Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
