Features of SYS-468
Description： * 7 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing * Working
Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor
speed can be adjusted from 13-25m/min *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air
cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine
is mounted lights. * Support customization for the machine appearance.
All Products
-
JoroI have got the machines and the sliding table saw are really good quality.
Contact Person :
Kevin Han
Phone Number :
+86 18661895387
WhatsApp :
+8618661895387

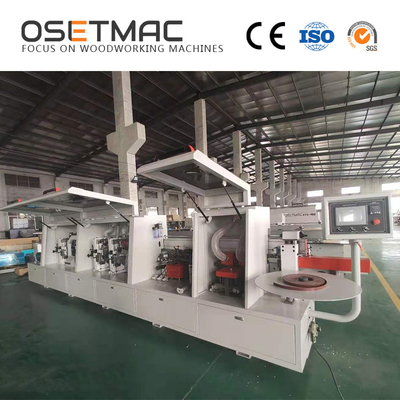

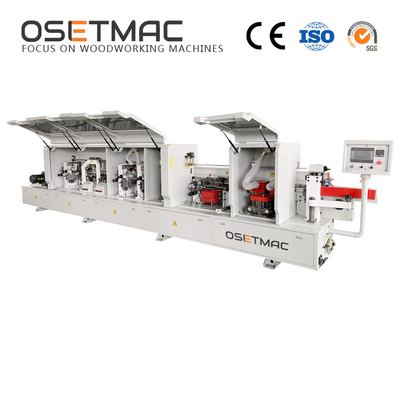

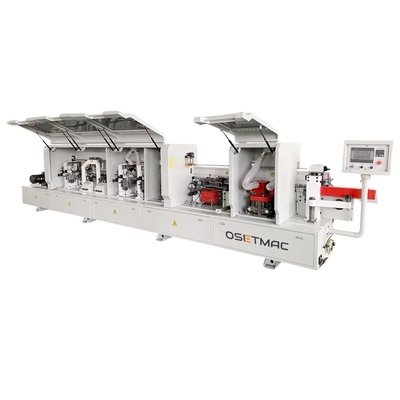

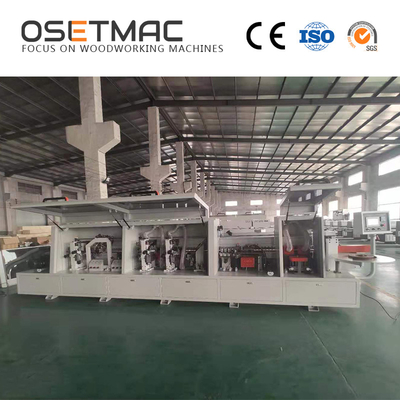

380V50HZ3PH Motor Power Automatic Edge Banding Machine SYS-568 for Woodworking Industry
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Automatic Edge Banding Machine |
|---|---|---|---|
| Use | Woodworking | Style | Horizontal |
| Warranty | 1 Year | Application | Woodworking |
| Weight (KG) | 1980 KG | Power (kW) | 16.62 |
| Key Selling Points | Sustainable | Applicable Industries | Hotels, Machinery Repair Shops, Manufacturing Plant, Restaurant, Home Use, Printing Shops, Construction Works , Other |
| Marketing Type | New Product 2020 | Machinery Test Report | Provided |
| Video Outgoing-inspection | Provided | Warranty Of Core Components | 1 Year |
| Core Components | Motor | Name | EDGE BANDING MACHINE |
| Function | SEALING EDGE BAND | Service | 12 MONTHS |
| Motor Power | 380V50HZ3PH | Color | CUSTOMIZED AS REQUEST |
Product Description
Product Description
Specification
Parameters | |||||
Model | SYS-568 | ||||
Panel Thickness | 10-60mm | ||||
Edge Band Thickness | 0.3-3mm | ||||
Panel Width | ≥60mm | ||||
Panel Length | ≥150mm | ||||
Feeding Speed | 15-23m/min | ||||
Working Pressure | 0.6Mpa | ||||
Voltage | 380V/50HZ/3PH | ||||
Gluing Motor | 0.75KW 50HZ 1400RPM | ||||
End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | ||||
Trimming Motor | 0.75KW * 4 200HZ 12000RPM | ||||
Corner Trimming Motor | 0.37KW * 2 200HZ 12000RPM 0.75KW * 2 200HZ 12000RPM | ||||
Buffing Motor | 0.37KW * 2 50HZ 1400RPM | ||||
Conveyor Motor | 2.2KW | ||||
Glue Pot Heating Power | 2.4KW | ||||
Lighting Power | 0.05KW | ||||
Lifting Motor | 0.25KW | ||||
Total Power | 12.4KW | ||||
Dimension | 5670*800*1620mm | ||||
Wooden Crate Package | 5770*900*1720mm | ||||
Dust System Outlet Diameter | 100mm | ||||
Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) | ||||
3400*450*290mm(Sliding Table) | |||||
Dimension | 3250*3450*900mm | ||||
G. W. | 800KG | ||||
Packing & Loading

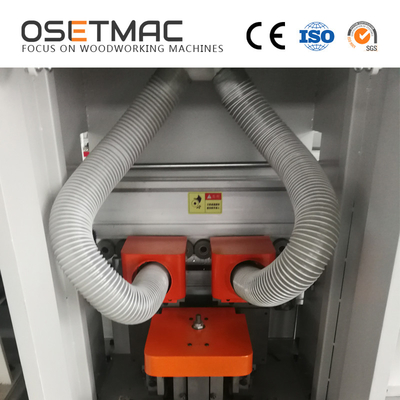

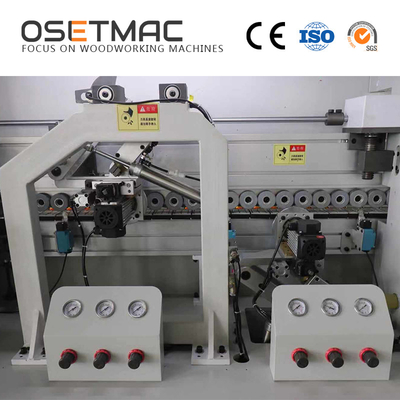

Details Images
Company Profile
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
Our Advantages
Features of SYS-468
