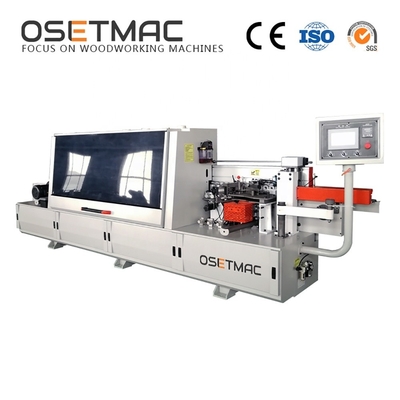

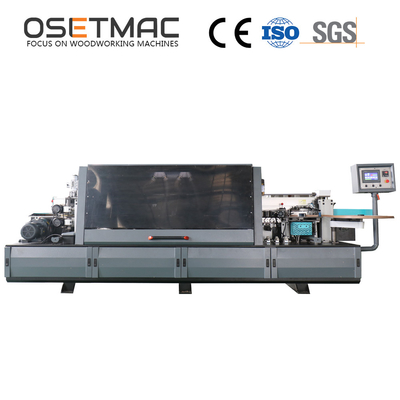

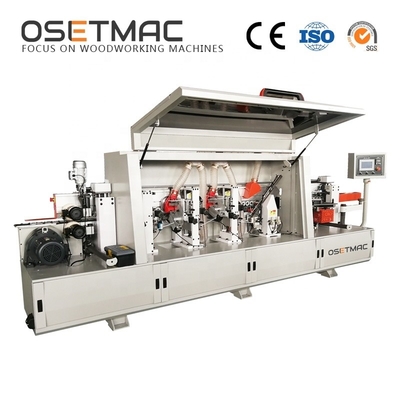

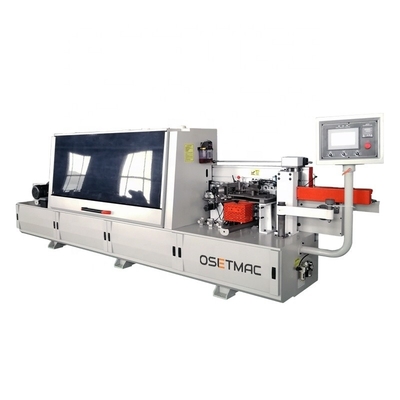

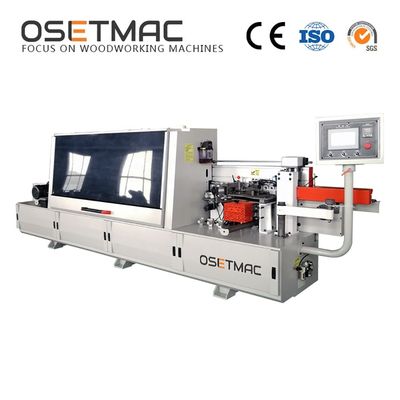

Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW

  • Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW
  • Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW
  • Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW
  • Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW
  • Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW
Place of Origin Shandong, China
Brand Name OSETMAC
Price $10,800.00/sets 1-3 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Edge Banding Machine
Voltage 380v Dimension(L*W*H) 4700x1000x1650mm
Power (kW) 10.43KW Weight (KG) 1500 Kg
Applicable Industries Building Material Shops, Manufacturing Plant, Construction Works  Warranty 1 Year
Function Gluing, Fine Trimming, Rough Trimming, End Trimming, Scraping, Buffing Key Selling Points Long Service Life
Panel Feed Speed(m/min) 23m/min Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year Core Components Motor
Use Furniture Production Panel Thickness 10-60mm
Panel Width ≥60mm Panel Length ≥150mm
Workign Pressure 0.6Mpa Edge Thickness 0.3-3mm
Gluing Motor 0.75KW 50HZ 1400RPM End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor 0.75KW * 4 300HZ 18000RPM Conveyor Motor 2.2KW
Gluing Pot Heating Power 2.4KW
Leave a Message
Product Description
Product Description
Automatic Edge Banding Machine SYS-368
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 0
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 1
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 2
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 3
Main Technical Parameter
Parameters
Model
SYS-368
Panel Thickness
10-60mm
Edge Band Thickness
0.3-3mm
Panel Width
≥60mm
Panel Length
≥150mm
Feeding Speed
15-23m/min
Working Pressure
0.6Mpa
Voltage
380V/50HZ/3PH
Gluing Motor
0.75KW 50HZ 1400RPM
End Cutting Motor
0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor
0.75KW * 4 300HZ 18000RPM
Buffing Motor
0.37KW * 2 50HZ 1400RPM
Conveyor Motor
2.2KW
Glue Pot Heating Power
2.4KW
Assistant Heating Power
0.3KW
Lighting Power
0.05KW
Lifting Motor
0.25KW
Total Power
10.43KW
Dimension
4700x1000x1650mm
Wooden Crate Package
4800×1050×1760mm
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 4
Our Advantages
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 5
Features of SYS-368
* 6 Functions: Gluing--End Cutting--Rough Trimming-Fine Trimming--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor speed can be adjusted from 13-25m/min *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
Packing&Shipping
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 6
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 7
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 8
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 9
After Sales Service
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 10
Our Service
The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 11
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 12
Woodworking Machinery Automatic Edge Banding Machine SYS-368 with Conveyor Motor 2.2KW 13

Our Services & Strength

Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
