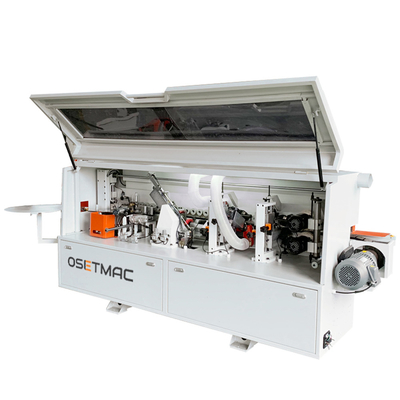

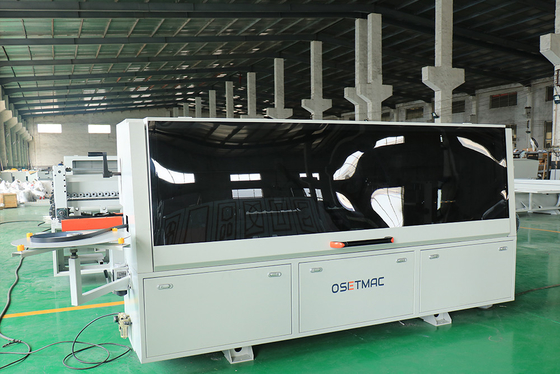

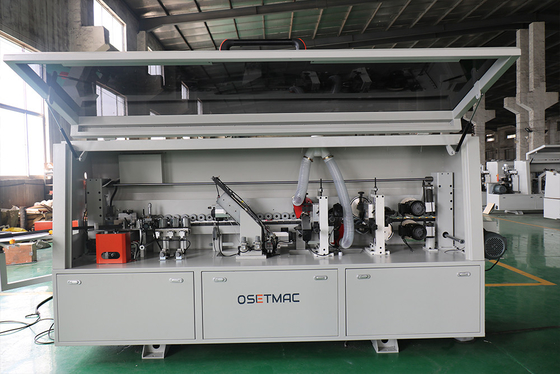

Compact and 6.3KW Auto Edge Banding Machine for Plywood in Small Manufacturing Plants
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Condition | New | Type | Edge Banding Machine |
---|---|---|---|
Voltage | 380V, 380V/50HZ/3PH | Dimension(L*W*H) | 3650x770x1600mm |
Power (kW) | 6.3KW | Weight (KG) | 860 Kg |
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works , Advertising Company | Warranty | 1 Year |
Function | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points | Automatic |
Panel Feed Speed(m/min) | 23m/min | Video Outgoing-inspection | Provided |
Warranty Of Core Components | 1 Year | Core Components | Bearing, Motor, PLC, Engine |
Use | MDF Production | Panel Thickness | 10-60mm |
Edge Band Thickness | 0.3-3mm | Panel Width | ≥60mm |
Panel Length | ≥150mm | Working Pressure | 0.6Mpa |
Gluing Motor | 0.37KW/50HZ/1400RPM | End Cutting Motor | 0.37KW * 2, 200HZ, 12000RPM |
Trimming Motor | 0.55KW * 2/200HZ/12000RPM | Corner Trimming Motor | 0.37KW * 2/50HZ/1400RPM |
Product Description
Product Description
Auto Edge Banding Machine for Plywood Manual Work for Small Woodworking Shops and Manufacturing Plants

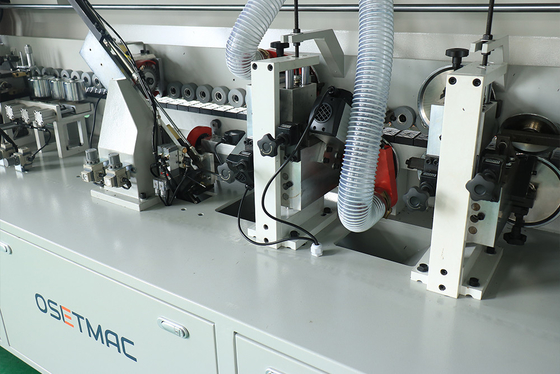

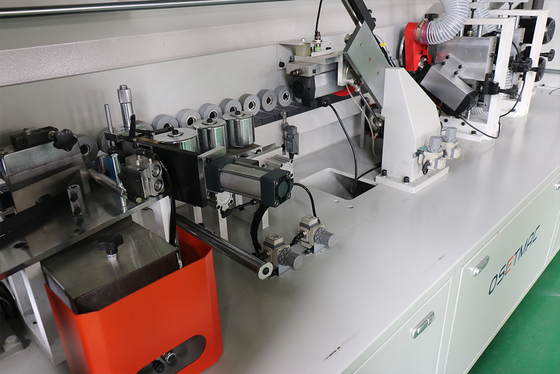

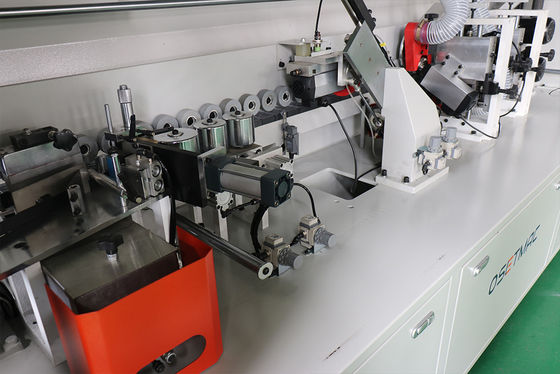

* 5 Functions: Gluing--End Cutting--Fine Trimming--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * MCGS inverter. * PLC Touch Screen * CC highspeed motor. *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
Machine | Function | ||||||||||||||
Pre-Milling | Gluing | End Cut | Rough Trim | Fine Trim | Corner Round | Scraping | Buffing | ||||||||
SYS-300 | ★ | ★ | ★ | ★ | |||||||||||
SYS-320 | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-320A | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-320B | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-360 | ★ | ★ | ★ | ★ | ★ | ★ | |||||||||
SYS-365J | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ||||||||
SYS-368J | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ | |||||||
SYS-365 | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-368 | ★ | ★ | ★ | ★ | ★ | ★ | |||||||||
SYS-468 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ||||||||
SYS-568 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ | |||||||
SYS-868 | ★ | ★ | ★ | ★ | ★★ | ★ | ★ |
Specification

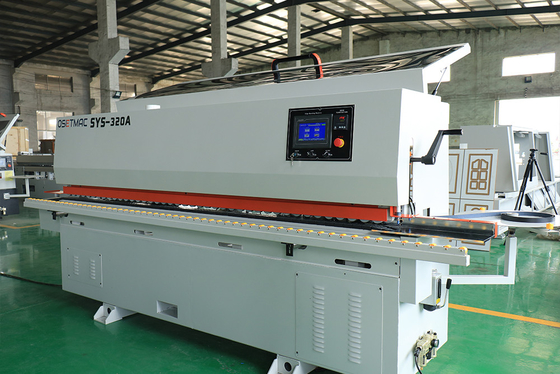

Model | SYS-320A | ||
Panel Thickness | 10-60mm | ||
Edge Band Thickness | 0.3-3mm | ||
Panel Width | ≥60mm | ||
Panel Length | ≥150mm | ||
Feeding Speed | 15m/min | ||
Working Pressure | 0.6Mpa | ||
Voltage | 380V/50HZ/3PH | ||
Gluing Motor | 0.37KW/50HZ/1400RPM | ||
End Cutting Motor | 0.37KW * 2/200HZ/12000RPM | ||
Fine Trimming Motor | 0.55KW * 2/200HZ/12000RPM | ||
Buffing Motor | 0.37KW * 2/50HZ/1400RPM | ||
Conveyor Motor | 1.5KW | ||
Glue Pot Heating Power | 1.5KW | ||
Assistant Heating Power | 0.3KW | ||
Lighting Power | 0.05KW | ||
Total Power | 6.3KW | ||
Dimension | 3650x770x1600mm | ||
Wooden Case Package | 3750x870x1700mm |
Packing & Delivery
Company Profile
OSETMAC focuses on woodworking machines for over 8 years.OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
