Commercial Mdf Edge Banding Machine High Precision Curved Edge Banding Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V/380V | After-sales Service Provided | Field Maintenance And Repair Service |
|---|---|---|---|
| Type | Edge Banding Machine | Panel Thickness | 10-60mm |
| Name | Edge Trimming Saw Machine | Feeding Speed | 12-24m/min |
| High Light | woodworking edge bander,edge banding trimming machine |
||
Product Description

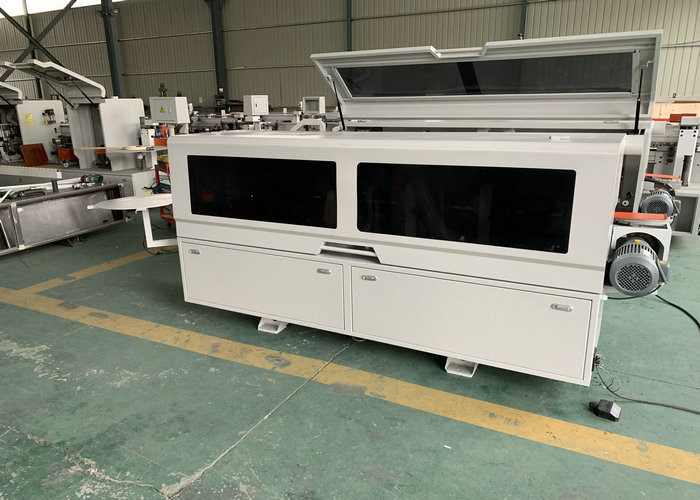

SYS-320 Automatic Edge Banding Machine with full functions for particle board, plywood and PVC
Product Description
1. Ideal for straight edge banding on solid wood, MDF, particle board, etc, edge banding tapes can be solid wood, PVC, melamine, and veneer.
2. Best quality and durable motor and electrical panels.
3. Funcions ,voltage and others can be customized.
4. High precision, high efficiency
Advantage:
- Full automatic with functions of : Gluing, End Cutting, Fine Trimming, Scraping, Buffing.
- This machine uses imported quality engines and electrics, which makes high performance and best quality-price ratio.
- High precision and easy-to-use features makes your work more efficient.
- This is an economic model with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
- This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.
Applications:
This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.
Specifications:
| MODEL | SYS-320 |
| Panel Thickness | 10-60mm |
| Edge Band Thickness | 0.4-3mm |
| Panel Width | ≥60mm |
| Panel Length | ≥150mm |
| Feeding Speed | 15m/min |
| Working Pressure | 0.6Mpa |
| Voltage | 380V/50HZ/3PH |
| Gluing Motor | 0.37KW 50HZ 1400RPM |
| End Cutting Motor | 0.37KW * 2 200HZ 12000RPM |
| Fine Trimming Motor | 0.75KW * 2 300HZ 18000RPM |
| Buffing Motor | 0.37KW * 2 50HZ 1400RPM |
| Conveyor Motor | 1.5KW |
| Glue Pot Heating Power | 1.5KW |
| Assistant Heating Power | 0.3KW |
| Lighting Power | 0.05KW |
| Total Power | 6.7KW |
| Dimension | 3120x670x1270mm |
| Net Weight | 700KGS |
Competitive Advantage:
- This new model edge banding machine is small-sized with automatic function, which can load 10 sets in one 20’ GP container and 20 sets in one 40’ GP container.
- We can customize the outlook and functions of the machine according to your requirement.
- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
