PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function

I'm Online Chat Now

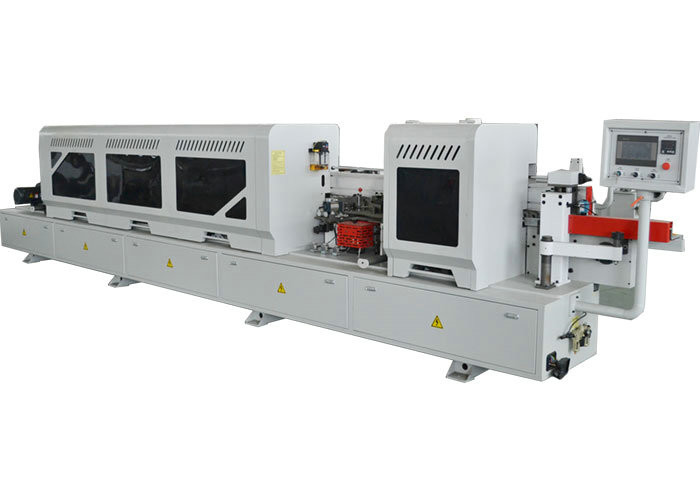

PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function

China PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function supplier
PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function supplier PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function supplier

Large Image :  PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: SYS-468J

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Certification: CE ISO Feeding Speed: Adjustable
Name: Edge Banding Machine Voltage: 220V/380V
Operation: Continuous Feature: High Efficiency

SYS-468 Automatic Edge Bander with Trimming for Panel Furniture and PVC





High efficiency full automatic edge banding machine has additional functions such as corner trim and pre-milling etc., material edge banding work. This banding machine is widely used for kitchen cabinet, wardrobe, office table etc. furniture edging treatment, The edge banding material can be PVC, Acrylic, Veneer etc, It’s your idea selection for full functions automatic edge banding machine.







Description:

  1. Full automatic with functions of : Gluing, End Cutting, Rough Trimming,Fine Trimming, Track Trimming, Scraping, Buffing.
  2. This machine uses imported quality engines and electrics, which make sure of the high performance and stability of the machine.
  3. High precision and easy-to-use features makes your work more efficient.
  4. This model has best quality-price ratio with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
  5. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.





Applications:







This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.





Specifications:



MODEL SYS-468
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 300HZ 18000RPM
Track Trimming Motor 0.37KW*2
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Lifting Motor 0.37KW
Glue Pot Heating Power 1.85KW
Assistant Heating Power 0.45KW
Lighting Power 0.16KW
Total Power 11.0KW
Dimension 5660x830x1610mm
Net Weight 2100KGS





Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
