MB103BG High Speed Woodworking Thicknesser Single Side Thickness Planer

I'm Online Chat Now

MB103BG High Speed Woodworking Thicknesser Single Side Thickness Planer

China MB103BG High Speed Woodworking Thicknesser Single Side Thickness Planer supplier

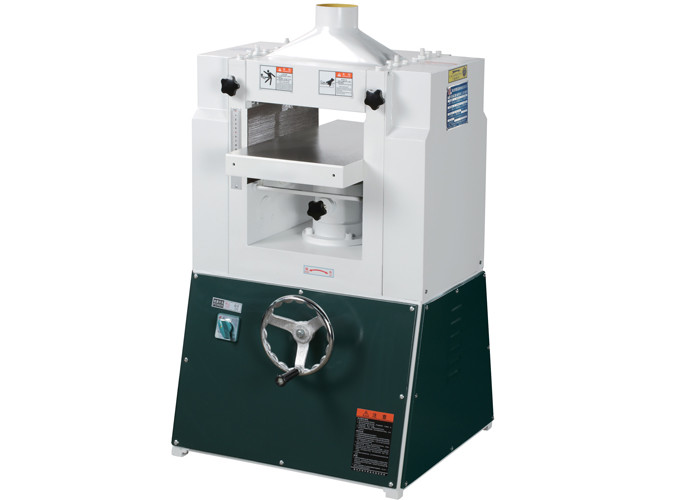

Large Image :  MB103BG High Speed Woodworking Thicknesser Single Side Thickness Planer

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: MB103BG

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Type: Single Side Blade Size: 300*25*3mm
Planing Length: ≧200mm Size: 560*600*1100mm
Voltage/install Power: 380V/3kw Feeding Speed: 7-10m/min

 High Speed Single Side Thickness Planer



Features

  1. Optional built-in vacuum cleaner
  2. Wood line, fine light type
  3. Press roller adjustable micro-compression





Specification
Spindle Speed 8000rpm
Feeding Speed 7-10m/min
Planing width 300mm
Planing thickness 3-130mm
Planing length ≧200mm
Maximum cutting capacity ≦3mm
Blade size 300*25*3mm
Voltage/install power 380V/3kw
Weight 270kg
Dimensions 560*600*1100mm







woodworking thickness planer Details



A thickness planer is a tool used for smoothing rough lumber or reducing the thickness of a board. With a planer every board on a project can be a perfect match. A planer will not straighten a bowed board, it would have to be run through a jointer to get one side straight first. The usual procedure is to joint the face and edge of a board, run it through a planer to get the correct thickness, then rip it to width on a table saw. Run the board through the planer face down only as many times as it takes to make a smooth surface on the top, then alternate removing material from one side of the board then the other, this will produce a more stable product.





Features





1. heavy-duty steel machine body and with special heat treatment process, better stability,durability, no deformation.

2. Two types of cutter head for optional : straight cutter head or helical cutter head

3. Stable high speed feeding system, with frequency conversion box,convenient for the users to adjust the feed rate depending on the workpiece surface quality, greatly improve production efficiency.

4. Heavy cutting spindle equipped with SKF high-speed bearings,more smooth cutting and lower noise, fast and powerful.

5. Smooth fine grinding table, lifting and down hand wheel, more efficiency.

6. High quality motor, optional dust removal device, durable, safe and clean.
