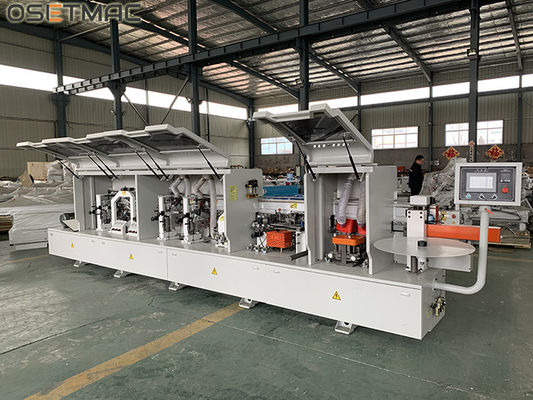

15-23m/min Woodworking Edge Banding Machine Edge Sealing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | woodworking edge bander,wood edge banding machines |
||
|---|---|---|---|
Product Description

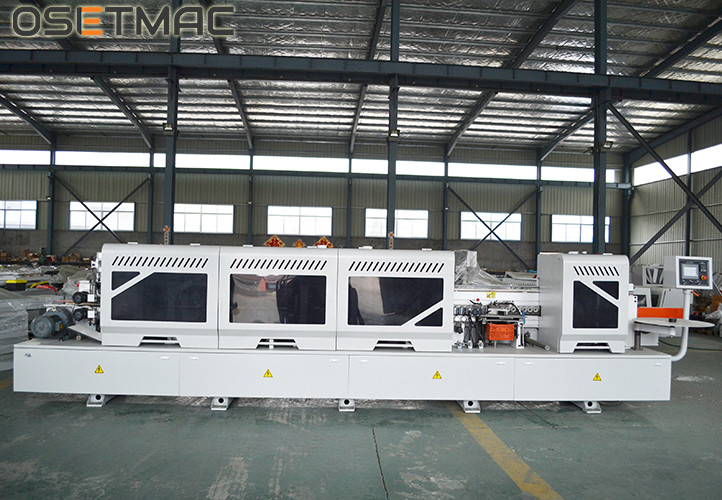

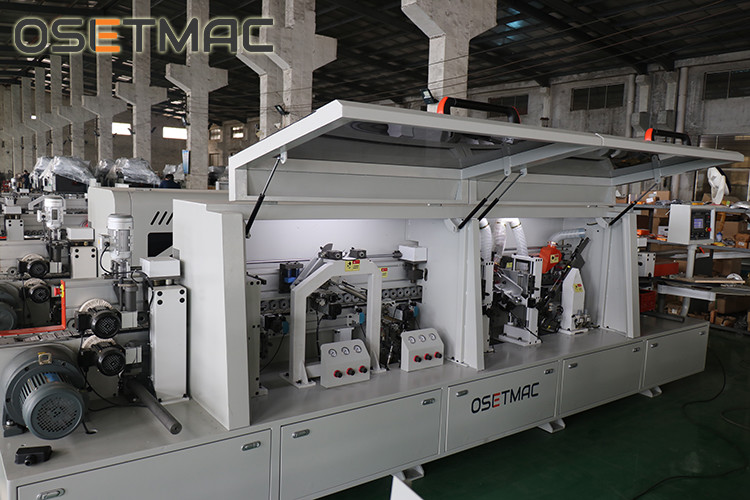

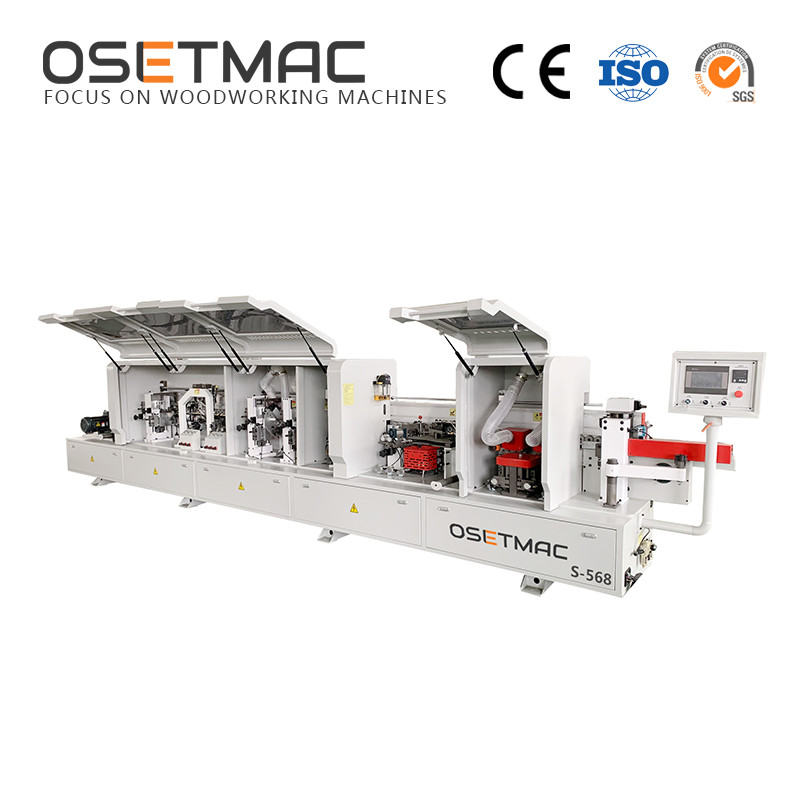

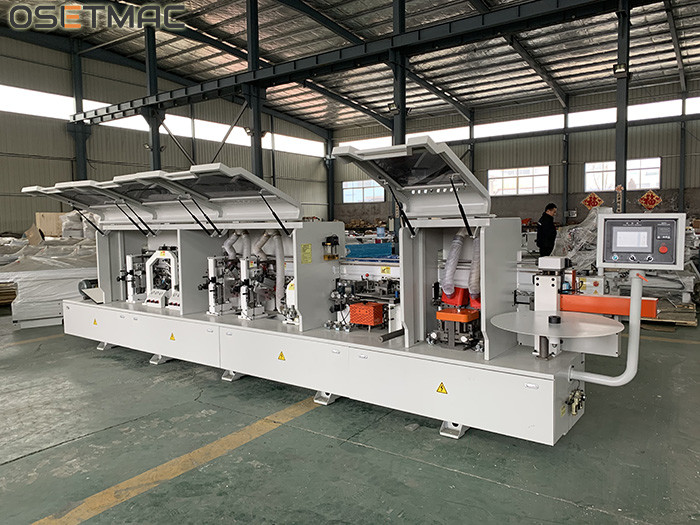

Automatic Edge Band Machine SYS-568 For Edge sealing
| Parameters | ||
| Model | SYS-568 | |
| Panel Thickness | 10-60mm | |
| Edge Band Thickness | 0.3-3mm | |
| Panel Width | ≥60mm | |
| Panel Length | ≥150mm | |
| Feeding Speed | 15-23m/min | |
| Working Pressure | 0.6Mpa | |
| Voltage | 380V/50HZ/3PH | |
| Pre-milling Motor | 2.2KW * 2 | |
| Gluing Motor | 0.75KW 50HZ 1400RPM | |
| End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | |
| Trimming Motor | 0.75KW * 4 200HZ 12000RPM | |
| Corner Trimming Motor | 0.37KW * 2 200HZ 12000RPM 0.75KW * 2 200HZ 12000RPM |
|

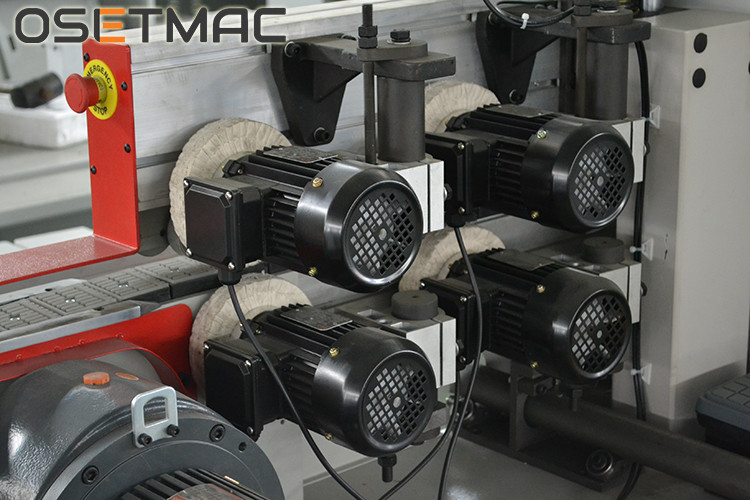

| Buffing Motor | 0.37KW * 2 50HZ 1400RPM | |
| Conveyor Motor | 3.7KW | |
| Glue Pot Heating Power | 2.4KW | |
| Lighting Power | 0.05KW | |
| Lifting Motor | 0.25KW | |
| Total Power | 16.62KW | |
| Dimension | 6700*1000*1650mm | |
| Wooden Crate Package | 6800*1050*1760mm | |
Description:
* 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
* Working Voltage: 380V/50HZ /3PH
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
*Honeywell travel switch, contactor, air switch.
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.
* Support customization for the machine appearance.
