PVC Panel Woodworking Edge Banding Machine Rough Trimming Gluing

Certification
China QINGDAO OSET INTERNATIONAL TRADING CO., LTD. certification
China QINGDAO OSET INTERNATIONAL TRADING CO., LTD. certification
Customer Reviews
I have got the machines and the sliding table saw are really good quality.

—— Joro

I'm Online Chat Now

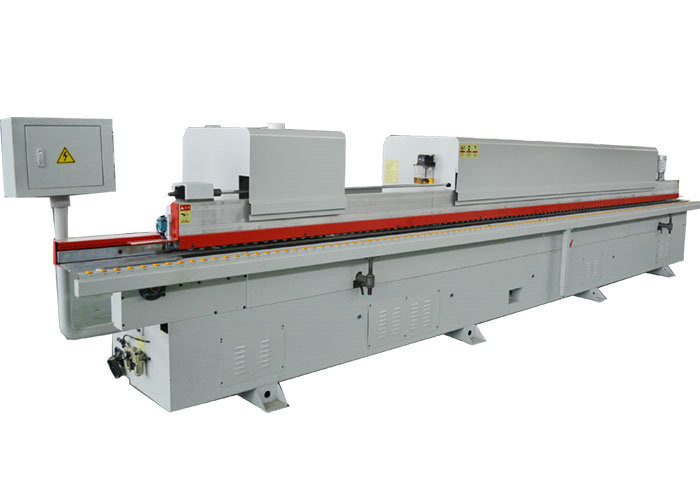

PVC Panel Woodworking Edge Banding Machine Rough Trimming Gluing

PVC Panel Woodworking Edge Banding Machine Rough Trimming Gluing
PVC Panel Woodworking Edge Banding Machine Rough Trimming Gluing

Large Image :  PVC Panel Woodworking Edge Banding Machine Rough Trimming Gluing

Product Details:
Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: SYS-468J
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year

PVC Panel Woodworking Edge Banding Machine Rough Trimming Gluing

Description
Name: Automatic Edge Banding Machine Certification: CE ISO
Feeding Speed: Adjustable Voltage: 220V/380V
Operation: Continuous Application: PVC Panel
High Light:

PVC Woodworking Edge Banding Machine

,

Rough Trimming Woodworking Edge Banding Machine

,

PVC Panel automatic edge banding machine

PVC Panel Woodworking Edge Banding Machine Rough Trimming Gluing



The Woodworking Edge Banding Machine is used for edging the panel furniture ,it is used for covering the materials like PVC ,veneer ,wood on the edge of the panel furniture like MDF ,PLYWOOD ,partical board etc .



Description:

  1. Full automatic with functions of : Gluing, End Cutting, Rough Trimming,Fine Trimming, Track Trimming, Scraping, Buffing.
  2. This machine uses imported quality engines and electrics, which make sure of the high performance and stability of the machine.
  3. High precision and easy-to-use features makes your work more efficient.
  4. This model has best quality-price ratio with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.



Specifications:



MODEL SYS-468
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 300HZ 18000RPM
Track Trimming Motor 0.37KW*2
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Lifting Motor 0.37KW
Glue Pot Heating Power 1.85KW
Assistant Heating Power 0.45KW
Lighting Power 0.16KW
Total Power 11.0KW
Dimension 5660x830x1610mm
Net Weight 2100KGS





Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
