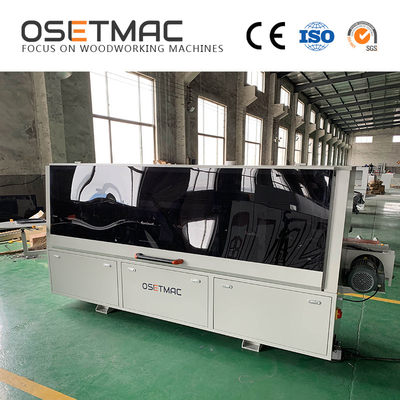

SYS-320A Edge Banding Machine for PVC Edge Sealing from OSETMAC Woodworking Machinery
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Machine Type | Edge Banding Machine |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Hot Product 2021 | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Motor | Warranty | 1 Year |
| Weight (KG) | 1040 KG | Power (kW) | 6.3KW |
| Key Selling Points | Easy To Operate | Showroom Location | None |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining | Name | Edge Banding Machine |
| Function | 5 Functions | Total Power | 6.3KW |
| Model | SYS-320A | Color | Customized Color |
| After-sales Service Provided | Online Support | After Warranty Service | Video Technical Support |
| Local Service Location | None | Port | Qingdao Port |
Product Description
Product Overview

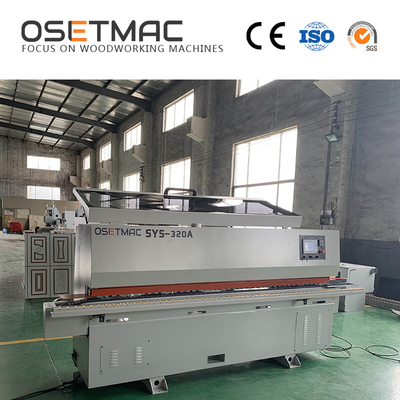

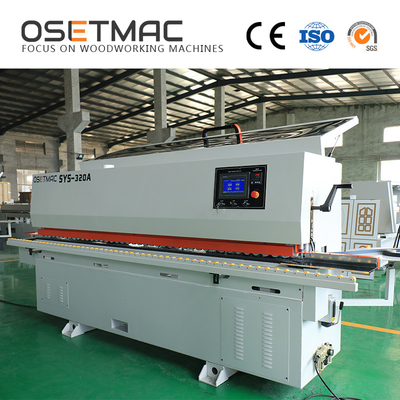

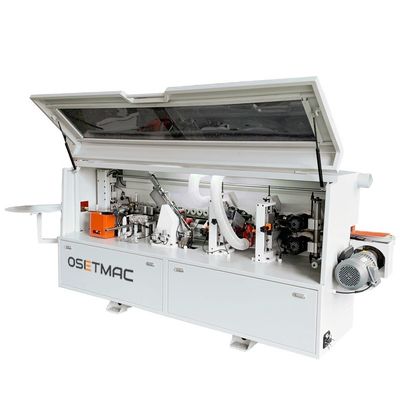

SYS-320A OSETMAC EDGE BANDING MACHINE

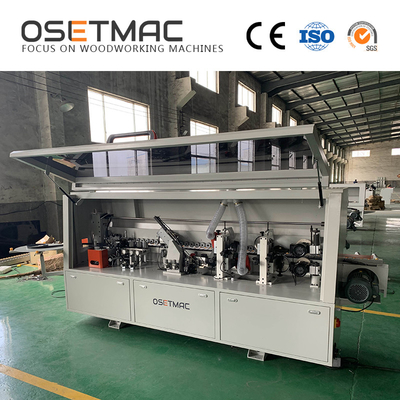

5 Functions: Gluing--End Cutting--Fine Trimming--Scraping--Buffing
FEATURES AT A GLANCE
* Working Voltage: 380V/50HZ /3PH * MCGS OR DELTA inverter for your choice. * PLC Touch Screen * CC highspeed motor. *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * Support customization
PRODUCT SPECIFICATIONS
No | Model | SYS-320A | ||
1 | Panel Thickness | 10-60mm | ||
2 | Edge Band Thickness | 0.3-3mm | ||
3 | Panel Width | ≥60mm | ||
4 | Panel Length | ≥150mm | ||
5 | Feeding Speed | 15m/min | ||
6 | Working Pressure | 0.6Mpa | ||
7 | Voltage | 380V/50HZ/3PH | ||
8 | Gluing Motor | 0.37KW/50HZ/1400RPM | ||
9 | End Cutting Motor | 0.37KW * 2/200HZ/12000RPM | ||
10 | Fine Trimming Motor | 0.55KW * 2/200HZ/12000RPM | ||
11 | Buffing Motor | 0.37KW * 2/50HZ/1400RPM | ||
12 | Conveyor Motor | 1.5KW | ||
13 | Glue Pot Heating Power | 1.5KW | ||
14 | Assistant Heating Power | 0.3KW | ||
15 | Lighting Power | 0.05KW | ||
16 | Total Power | 6.3KW | ||
17 | Dimension | 3650x770x1600mm | ||
18 | Wooden Case Package | 3750x870x1700mm | ||
OSETMAC SYS-320A FUNCTIONS
